Custom electrical contact clips are manufactured from customer drawings, samples, or functional requirements for electrical assemblies and equipment hardware. Geometry, contact position, forming details, material, finish, and inspection criteria are reviewed for each project. Youjia Metals supports drawing-based prototypes and production of stamped electrical contact clips without assuming unconfirmed electrical ratings or material grades.
Product Overview

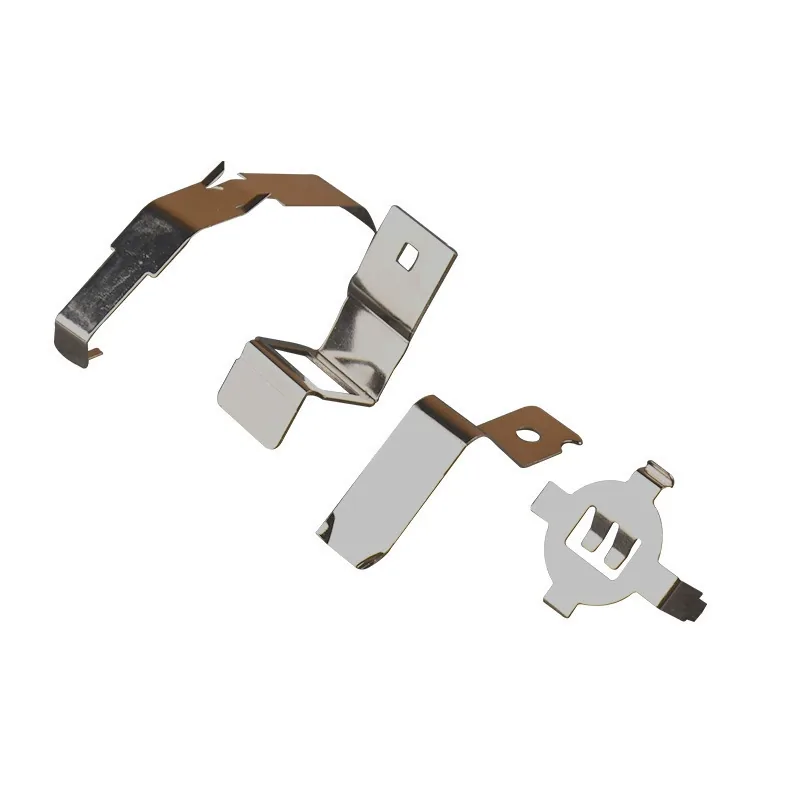

These formed clips can be developed as contact, retention, connection, or spring-style components where a small stamped part must fit an assembly accurately. The supplied images show several custom geometries; final suitability depends on the approved drawing, mating components, and operating conditions.
Key Features
- Custom geometry produced from drawings or physical samples
- Formed tabs, bends, slots, and contact features available after review
- Prototype and repeat-order support
- Inspection plan agreed before production
- Secondary operations evaluated by project
Custom Specifications
| Item | Project Information |
|---|---|
| Part Type | Custom electrical contact clip or stamped contact component |
| Material | Confirmed from drawing, sample, or functional requirement |
| Thickness | According to approved drawing |
| Contact Geometry | Custom tabs, bends, slots, holes, or formed features |
| Surface Finish | Confirmed according to conductivity, corrosion, and assembly needs |
| Tolerance | Defined on the customer drawing and reviewed for manufacturability |
| Production Quantity | Confirmed after tooling and process review |
| Drawing Formats | PDF, DWG, DXF, STEP, IGS, or sample for review |
Stamping and Forming Process
Manufacturing can involve blanking, piercing, bending, progressive forming, trimming, and other secondary operations. The route is selected after reviewing part geometry, volume, material behavior, critical dimensions, and assembly requirements. Tooling decisions are not finalized until technical information is confirmed.
Contact and Assembly Considerations
For an OEM electrical spring contact or formed clip, buyers should identify the mating part, contact area, retention method, installation direction, expected movement, and environmental conditions. Electrical performance, spring force, and lifecycle claims require project-specific validation and should not be inferred from product photographs.
Materials and Surface Finish
Material and finish options are selected according to the drawing and functional requirements. Please provide conductivity, corrosion, forming, soldering, plating, or appearance requirements where applicable. We will confirm feasible routes before quotation.
Applications
Custom clips may be evaluated for electrical assemblies, equipment hardware, enclosures, terminals, retention systems, and other OEM products. Actual use must be confirmed by the buyer’s engineering requirements and final sample approval.
Quality Inspection
Inspection can cover dimensions, hole or slot position, bend geometry, visual finish, fit with approved gauges, and other drawing-defined characteristics. Required reports, sampling plans, and documentation should be listed with the RFQ.
OEM Manufacturing From Drawings or Samples
Send a drawing or representative sample together with quantity, material and finish requirements, critical dimensions, application, and inspection expectations. Our team will review manufacturability and identify information that needs confirmation before tooling or production.
Frequently Asked Questions
Can you manufacture custom electrical contact clips from a drawing?
Yes. Geometry, material, finish, tolerance, quantity, and inspection requirements must be reviewed before confirmation.
Can you copy a sample part?
A physical sample can support evaluation, although an approved drawing is recommended for production control.
Do you specify electrical ratings?
Electrical ratings are not assumed. Please provide the required current, contact, conductivity, and validation criteria for engineering review.
What information is needed for a quotation?
Please send the drawing or sample, material, thickness, finish, quantity, application, critical dimensions, and required documentation.
Request a Quote
Send your drawing, sample, quantity, material requirements, and inspection notes for a project review.
Send Your Drawing
