Custom Sheet Metal Mounting Plates are manufactured from customer drawings, approved samples, or project specifications. This page covers mounting plates, formed covers, and plate-style hardware. Dimensions, geometry, material, surface finish, quantity, inspection requirements, and packaging are reviewed before quotation. Unknown technical values are confirmed from approved project documents rather than assumed from photographs.
Product Overview

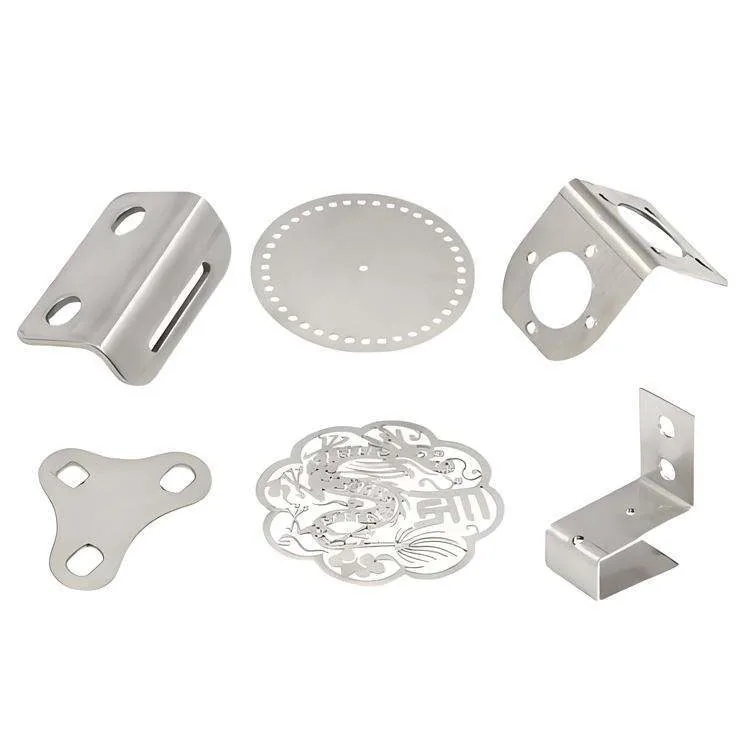

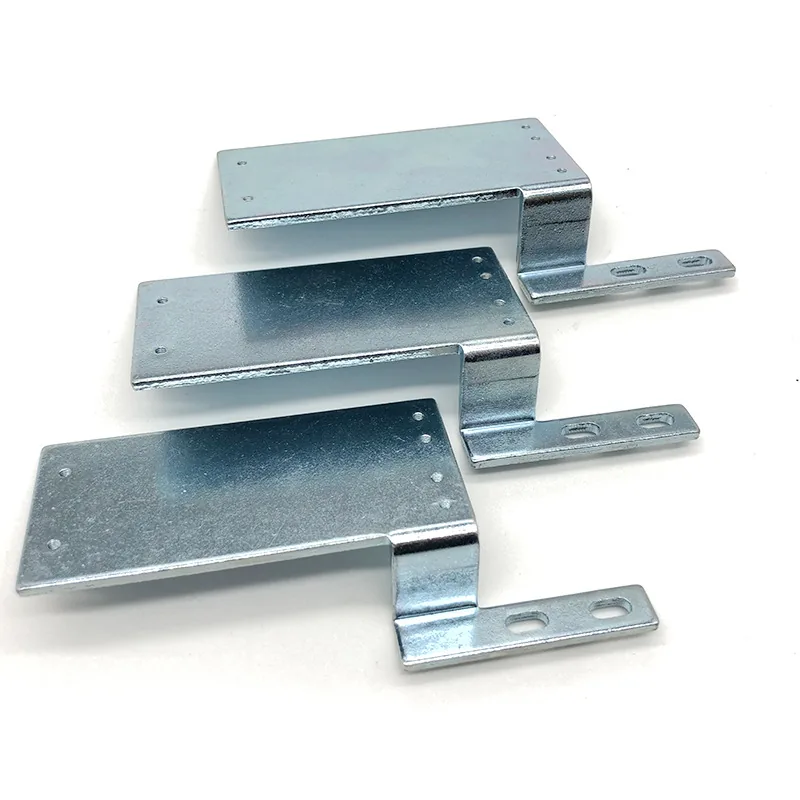

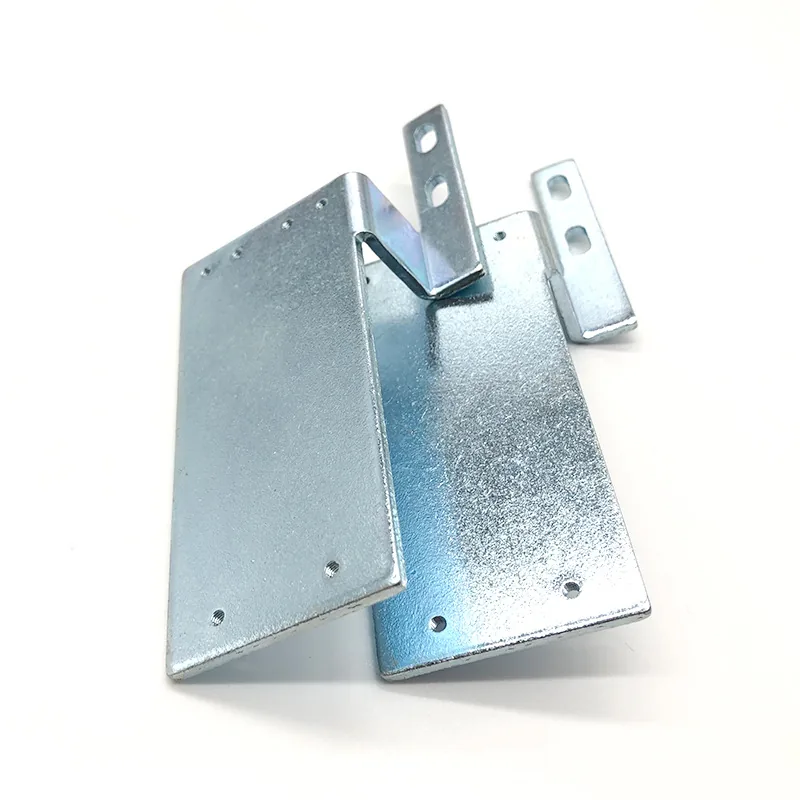

These drawing-based parts can be developed for equipment mounting, enclosure assemblies, support structures, and drawing-based hardware. The supplied images demonstrate manufacturing range and visible part forms. Final suitability depends on the customer drawing, mating structure, service environment, and sample approval.
Key Features
- Custom geometry based on drawings or approved samples
- Holes, slots, tabs, bends, flanges, or formed features reviewed by project
- Prototype and repeat-order support after tooling evaluation
- Secondary operations assessed against functional requirements
- Inspection criteria agreed before production
Custom Specifications
| Item | Project Information |
|---|---|
| Product Type | Custom Sheet Metal Mounting Plates |
| Material | Confirmed according to drawing, sample, or written specification |
| Thickness | According to approved drawing |
| Dimensions | Custom; drawing-based confirmation |
| Tolerance | Drawing-defined and subject to manufacturability review |
| Surface Finish | Confirmed according to functional and appearance requirements |
| Quantity | Confirmed after process and tooling evaluation |
| Drawing Formats | PDF, DWG, DXF, STEP, IGS, or approved sample |
Stamping and Forming Process
The manufacturing route may include blanking, piercing, bending, forming, trimming, deburring, and approved secondary operations. Process selection depends on geometry, material behavior, thickness, annual demand, critical dimensions, and assembly needs.
Design and Manufacturability Review
Engineering review covers bend locations, hole-to-edge relationships, datum selection, accessible inspection points, mating features, and tooling constraints. Buyers should identify critical-to-function dimensions and any areas that affect installation or downstream assembly.
Materials and Surface Finish
Material grade and finish are not inferred from the images. Please state forming, corrosion, conductivity, appearance, coating, or assembly requirements. Alternatives are discussed only after technical review.
Applications
custom sheet metal mounting plates may be evaluated for equipment mounting, enclosure assemblies, support structures, and drawing-based hardware. Application suitability remains subject to the buyer’s engineering confirmation and approved production sample.
Quality Inspection
Inspection can cover dimensions, hole and slot position, bend geometry, flatness, visual finish, gauge fit, and other drawing-defined characteristics. Required reports, sampling plans, traceability, and packaging controls should be included in the RFQ.
OEM Manufacturing From Drawings or Samples
Send the technical file or sample together with quantity, material, thickness, finish, critical dimensions, application, inspection documents, packaging, and destination. We will identify missing information before tooling or production.
Frequently Asked Questions
Can you manufacture this part from my drawing?
Yes. Geometry, material, thickness, tolerance, quantity, finish, and inspection requirements must be reviewed before confirmation.
Can you evaluate a physical sample?
A sample can support evaluation, although an approved drawing is recommended for production and inspection control.
What information is required for quotation?
Please provide technical files, material, thickness, quantity, finish, critical dimensions, application, required documents, packaging, and delivery destination.
Do you provide fixed standard specifications?
These are custom products. Specifications are confirmed from the approved drawing or sample for each project.
Request a Quote
Send your drawing, sample, quantity, material, finish, and inspection requirements for review.
Send Your Drawing
