| Size | Pitch (p)(inch) | Total Height (L)(inch) | Hole Diameter (a)(inch) | Screw Diameter (d) (inch) |
Shank Diameter (D) (inch) |
Clamp Height (h1) (inch) |
Hex Side (s) (inch) |
Applicable Wrench Size (inch) |
|---|---|---|---|---|---|---|---|---|
| M2 | 0.02 | 0.67 | 0.18 | 0.12 | 0.10 | 0.35 | 0.21 | 0.22 |
| M3 | 0.02 | 0.80 | 0.21 | 0.16 | 0.13 | 0.34 | 0.27 | 0.28 |
| M5 | 0.03 | 1.05 | 0.28 | 0.20 | 0.17 | 0.37 | 0.31 | 0.31 |
| M6 | 0.04 | 1.27 | 0.28 | 0.24 | 0.20 | 0.43 | 0.39 | 0.39 |
| M4 | 0.05 | 0.90 | 0.26 | 0.16 | 0.13 | 0.39 | 0.27 | 0.28 |
| M8 | 0.05 | 1.36 | 0.40 | 0.24 | 0.20 | 0.59 | 0.39 | 0.39 |
| M10 | 0.06 | 1.76 | 0.40 | 0.31 | 0.28 | 0.59 | 0.49 | 0.49 |
| M12 | 0.07 | 2.02 | 0.58 | 0.39 | 0.33 | 0.71 | 0.62 | 0.63 |
| M14 | 0.08 | 2.22 | 0.57 | 0.39 | 0.34 | 0.84 | 0.62 | 0.63 |
| M16 | 0.08 | 2.54 | 0.73 | 0.47 | 0.41 | 0.94 | 0.70 | 0.71 |
| M18 | 0.10 | 2.90 | 0.79 | 0.47 | 0.42 | 1.16 | 0.70 | 0.71 |
| M20 | 0.10 | 2.91 | 0.81 | 0.47 | 0.42 | 1.17 | 0.70 | 0.71 |
| M22 | 0.10 | 3.01 | 0.99 | 0.47 | 0.42 | 1.28 | 0.70 | 0.71 |
| M24 | 0.12 | 3.15 | 1.07 | 0.47 | 0.42 | 1.30 | 0.70 | 0.71 |
| M26 | 0.12 | 3.41 | 1.09 | 0.47 | 0.42 | 1.40 | 0.70 | 0.71 |
| M30 | 0.14 | 3.95 | 1.31 | 0.63 | 0.55 | 1.40 | 0.94 | 0.94 |
| M32 | 0.14 | 3.95 | 1.32 | 0.63 | 0.57 | 1.40 | 0.94 | 0.94 |

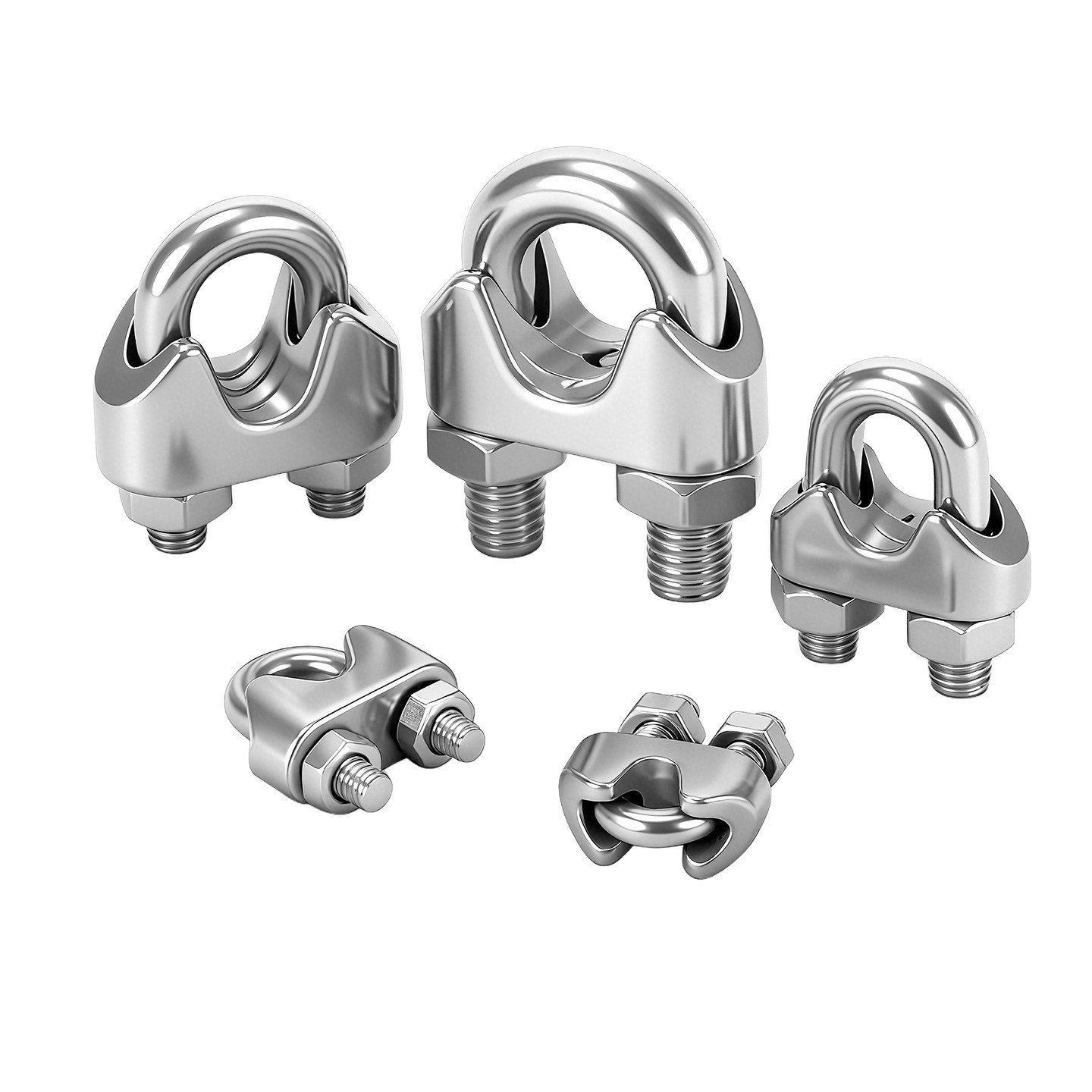

Heavy Duty 304/316 Stainless Steel Wire Rope Clips for Professional Rigging
As a premier stainless steel supplier with over 10 years of manufacturing excellence in Dainan, YouJia Metal provides high-precision heavy duty wire rope clips. Our stainless steel cable clamps, available in premium AISI 304 and AISI 316 grades, are engineered for the most demanding rigging hardware environments, ensuring a secure and permanent grip for every steel cable system.

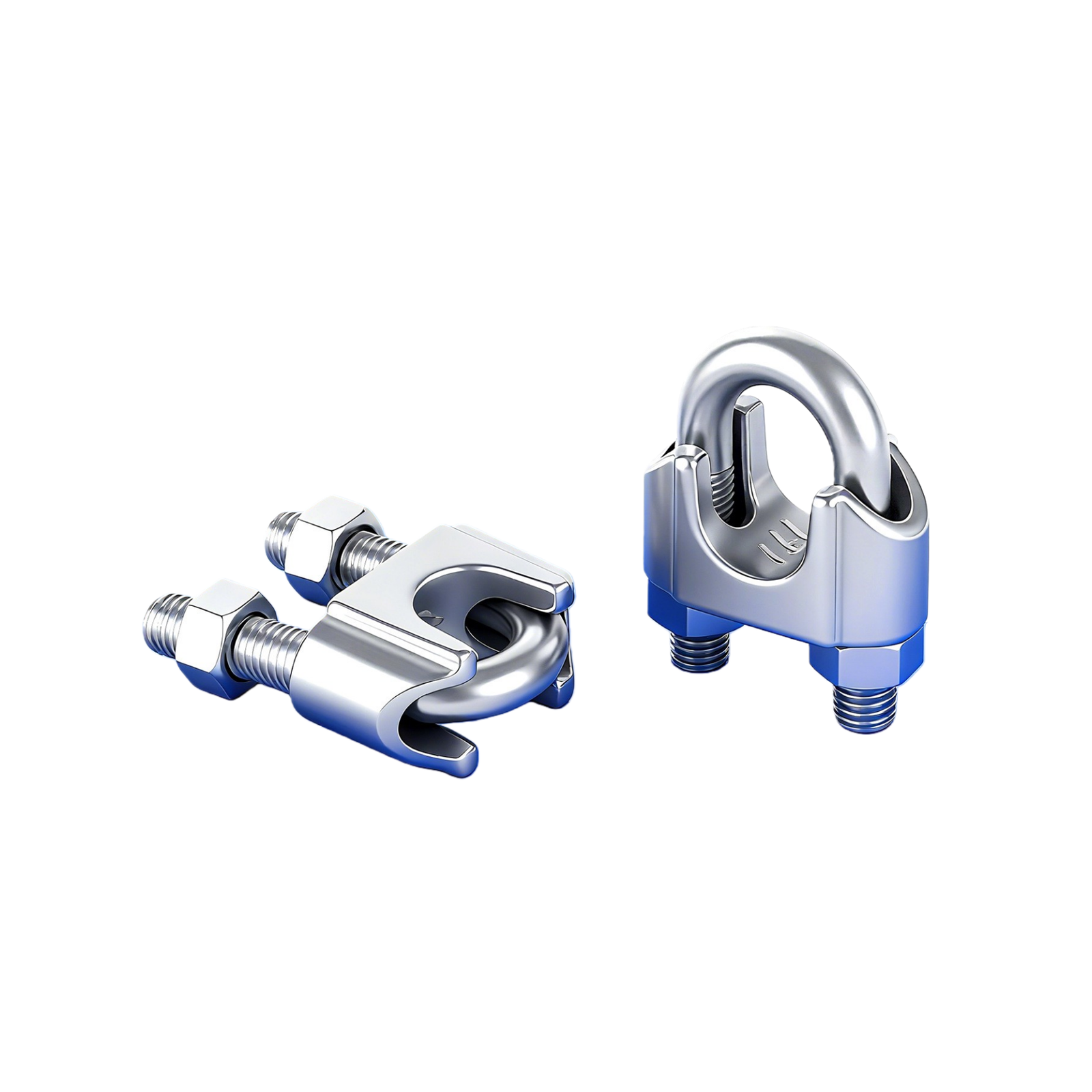

H2: Superior Material Integrity: AISI 304 vs. Marine Grade 316
In the industrial rigging hardware sector, material choice is the foundation of safety. We offer our wire rope clips in two primary grades to suit your specific project needs:
-
304 Stainless Steel: The industry standard for excellent rust resistance in general outdoor and construction applications.
-
316 Stainless Steel (Marine Grade): Specifically designed for offshore and coastal environments. As a professional stainless steel supplier, we recommend SS316 for applications exposed to salt spray and harsh chemicals due to its superior molybdenum content, which prevents pitting and corrosion.

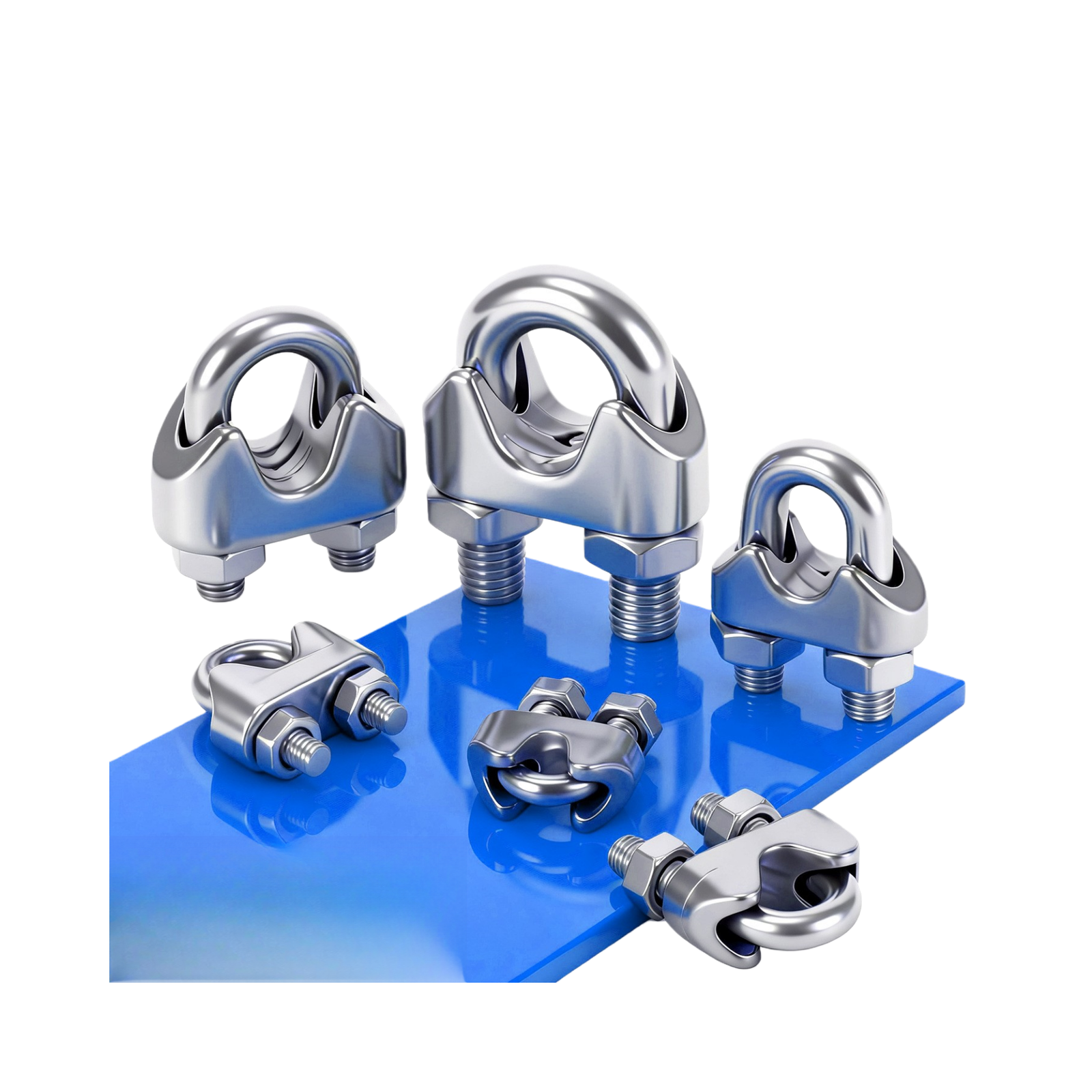

H2: Technical Specifications: Wire Rope Clip 6mm & 8mm Series
Our heavy duty wire rope clips are manufactured via precision casting and CNC machining to ensure consistent thread accuracy and maximum clamping force.
-
Precision Sizing: We specialize in the wire rope clip 6mm and wire rope clip 8mm series, perfect for medium to high-load tensioning.
-
Tolerance Control: Every bolt and saddle is processed to within ±0.005mm to guarantee compatibility with international cable standards.
-
Surface Finish: High-mirror polished to reduce friction and enhance the aesthetic professional look of your rigging hardware setup.
H2: Versatile Applications in Heavy Duty Industries
Our heavy duty wire rope clips are more than just fasteners; they are critical safety components across diverse sectors:
-
Industrial Rigging Hardware: Used in overhead lifting, structural cable support, and crane systems.
-
Marine & Maritime: Essential for sailboat rigging, dock lifelines, and offshore mooring equipment.
-
Renewable Energy: Secure components for solar PV mounting systems and wind turbine maintenance.
-
Architectural Cable Systems: Ideal for high-end balustrades and aesthetic cable railings requiring both strength and beauty.

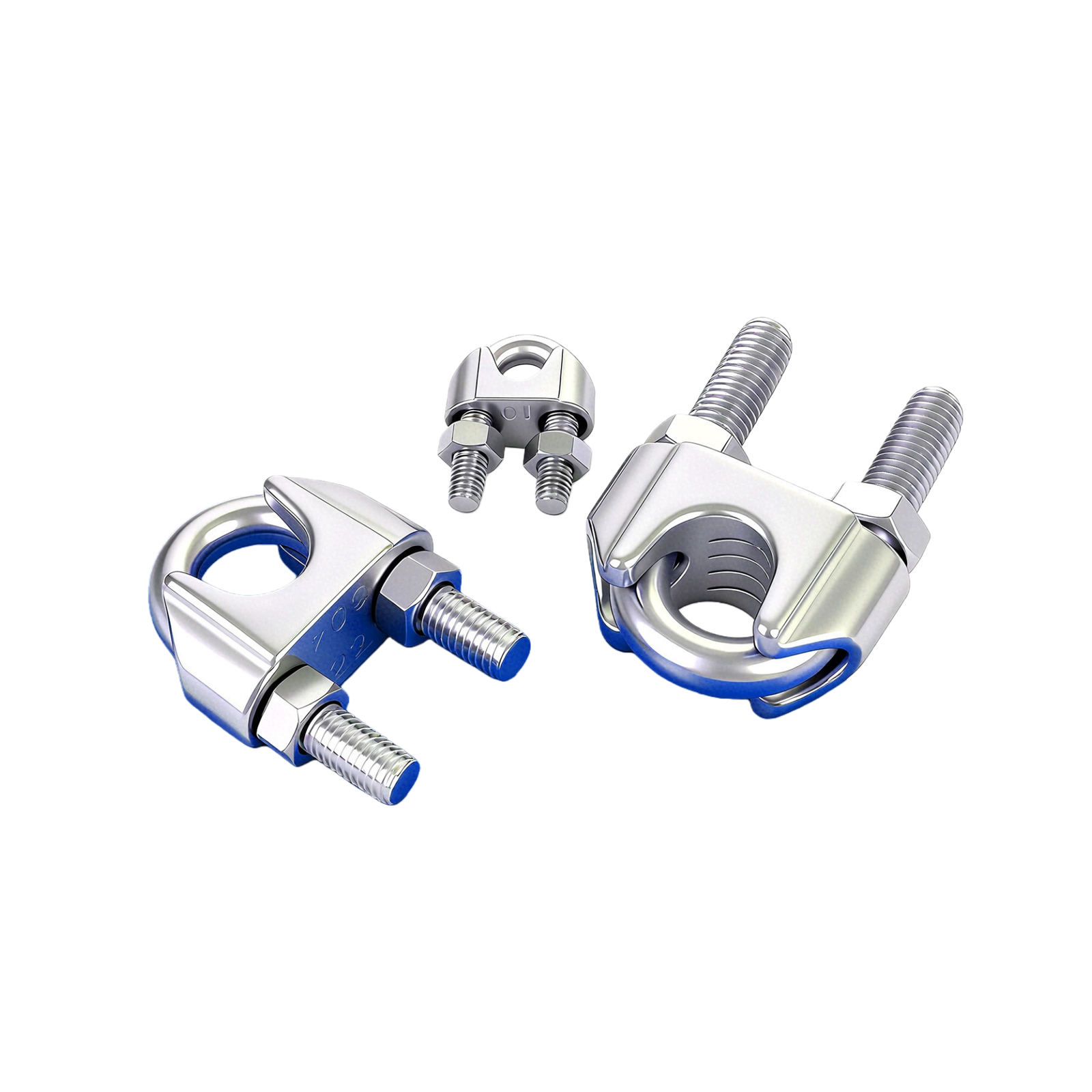

H2: Expert Non-Standard Custom Processing
Not every project can be completed with a standard wire rope clip size chart. As a flexible stainless steel supplier, we thrive on non-standard custom processing. Whether you need an oversized saddle, a specialized U-bolt thread pitch, or custom dimensions for unique cable types, our engineering team can manufacture parts based on your STP or DWG drawings. We provide full OEM/ODM support for global rigging hardware brands, ensuring 100% compliance with your technical specifications.
Technical Specifications & Wire Rope Clip Size Chart
| Product Detail | Specification |
| Product Name | Wire rope clip stainless steel / Wire rope clip clamp |
| Material Grade | Authentic AISI 304 / 316 (Marine Grade) |
| Available Sizes | Wire rope clip 6mm, Wire rope clip 8mm, up to 32mm |
| Size Standards | Follows the global wire rope clip size chart (DIN, ANSI) |
| Specialty | Expert in non-standard parts and stamping of metal parts |
| Bulk Supply | 1000 Pcs/Pack for optimized shipping |
Professional Wire Rope Clip Installation & Safety
Proper wire rope clip installat (installation) is critical to the load-bearing capacity of your assembly. When performing a wire rope clip installation, remember to always “never saddle a dead horse” to ensure the U-bolt is positioned correctly.
Our wire rope clips home and industrial users alike rely on these components for diverse applications:
- Rigging Systems: Integrates perfectly with our [stainless steel pulleys] and [link chains].
- Securing: Often used in combination with [stainless steel eyebolt nut] and [eye bolt with nut] sets.
- Architecture: Vital for tensioning cables in [wind dynamic walls] and secure fencing, alongside our [saddle clamps] and [expansion bolts].
Why YouJia Metal is the Expert in Wire Rope Clip Clamp Supply?
- Dainan Factory Source: By sourcing wire rope clip stainless steel directly from our hub, you eliminate middleman costs and get wholesale pricing.
- Custom Fabrication: We don’t just sell standard wire rope clip size items; we specialize in custom non-standard parts for complex machinery.
- Marine Grade Quality: Our SS316 wire rope clip clamp offers superior resistance to pitting and saltwater corrosion.
- Integrated Hardware: We are your one-stop-shop for [stainless steel bolts and nuts] and all industrial rigging fasteners.
- Frequently Asked Questions (FAQ)
Q: What is the most common wire rope clip size for outdoor fencing?
A: Most wire rope clips home projects use the wire rope clip 6mm or wire rope clip 8mm, depending on the cable thickness. Always refer to our wire rope clip size chart for exact measurements.
Q: Can you provide customized wire rope clip clamp designs?
A: Yes. We are an expert in customized processing. We can adjust the thickness and material of the wire rope clip stainless steel to meet your specific load requirements.
Call to Action (CTA)
Looking for a Bulk Wire Rope Clip Stainless Steel Supplier?
Request a free quote for your wire rope clip 6mm or wire rope clip 8mm orders today. Our team is ready to help you with standard or custom non-standard part solutions!
