Types of Industrial Fasteners and Their Applications

Industrial fasteners include bolts, screws, nuts, washers, studs, rivets, pins, anchors and other components used to create mechanical joints. The correct type cannot be selected from its name or appearance alone. A buyer should define the joint function, loading, mating materials, thread system, environment, installation access, service requirements and applicable drawing or standard. This guide explains the main fastener families and the information needed for a useful supplier review. It does not assign an unverified load rating, torque or service life to a generic part.

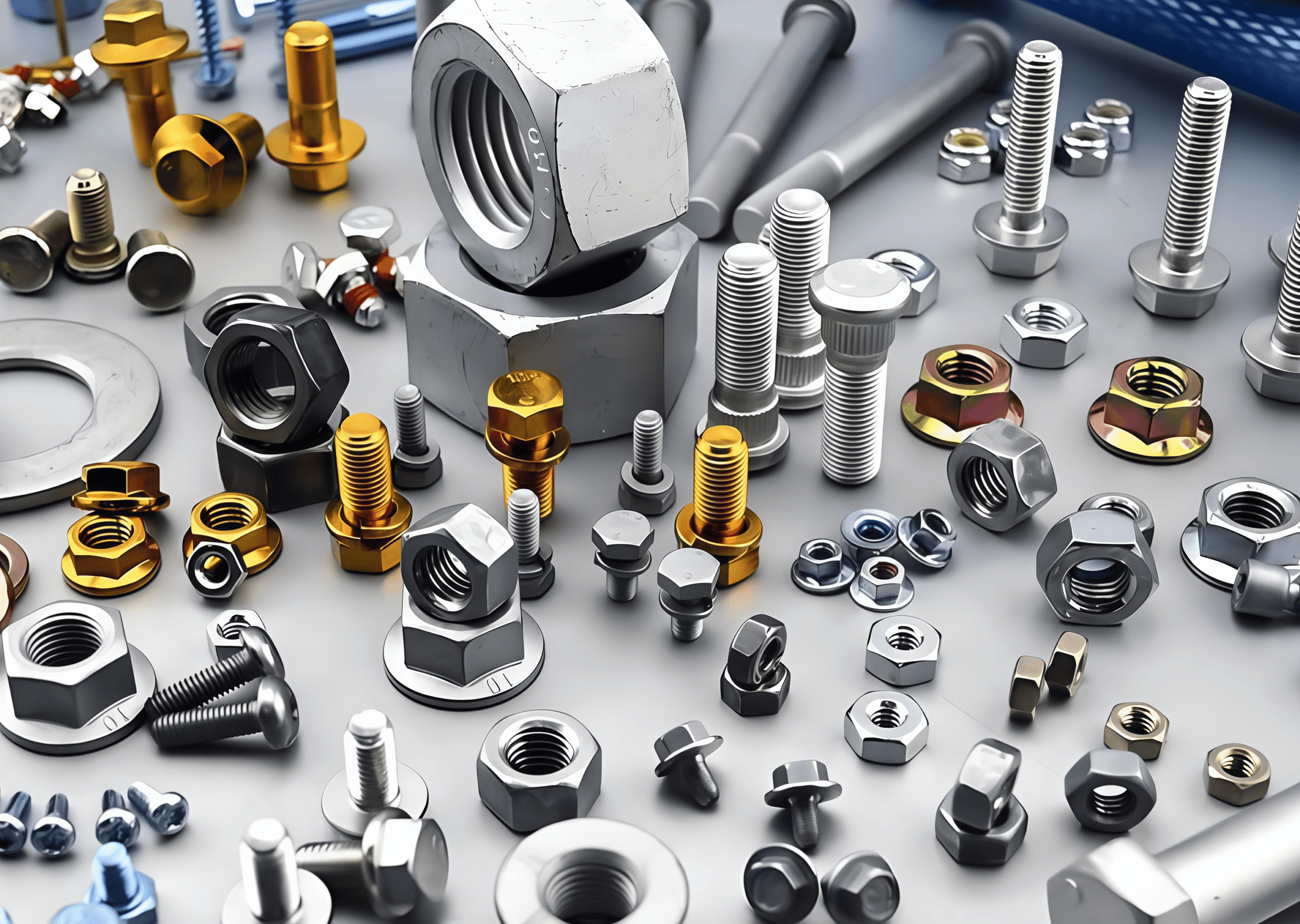

Industrial Fastener Families at a Glance

Fasteners perform several different jobs. Some clamp two components together, some locate parts, some create a permanent joint, and others allow adjustment or repeated maintenance. A bolt used with a nut, a machine screw installed in a tapped hole and a self-tapping screw forming its own mating thread may look similar from a distance, but they create different joint conditions.

The family name is only the beginning. A complete specification connects the fastener to the joint. For example, “stainless bolt” does not define alloy, thread, dimensions, strength requirement, finish or whether the mating nut is compatible.

Bolts and Cap Screws

Bolts and cap screws are used in machinery, frames, enclosures, vehicles, construction assemblies and production equipment. Common head forms include hex, socket, flange, carriage and countersunk designs. The head affects tool access, bearing area, installation direction and the space needed around the joint.

A through-bolt normally passes through clearance holes and works with a nut. A cap screw may engage a tapped hole. That distinction changes thread engagement, serviceability and failure modes. State whether the fastener clamps through a nut, enters a threaded insert or engages directly with a component. Provide the required grip and thread engagement rather than selecting length only from overall stack thickness.

Do not substitute head styles without review. A flange head can distribute load differently from a standard hex head, while a socket head requires access for an internal drive. A countersunk head changes the geometry of the mating hole and may reduce remaining material. The controlled assembly drawing should define the joint interface.

Machine Screws and Tapping Screws

Machine screws use a defined machine thread and are common in electrical equipment, enclosures, instruments and light mechanical assemblies. Head and drive selection affects installation tooling, access, appearance and resistance to driver cam-out. The mating thread may be in a nut, tapped part or installed insert.

Tapping screws create or form a mating thread in sheet, plastic or another prepared material. They are not one universal product. Thread-forming and thread-cutting designs interact differently with the substrate, pilot hole and installation torque. If an application requires a specific screw type, define it by drawing or recognized product designation and verify the installation process.

For thin sheet, consider whether the available engagement is sufficient and whether a formed extrusion, weld nut, clinch nut or separate nut is needed. Repeated removal can change the performance of a thread formed directly in thin material. The buyer should state service expectations, not assume that all screws remain suitable for unlimited reuse.

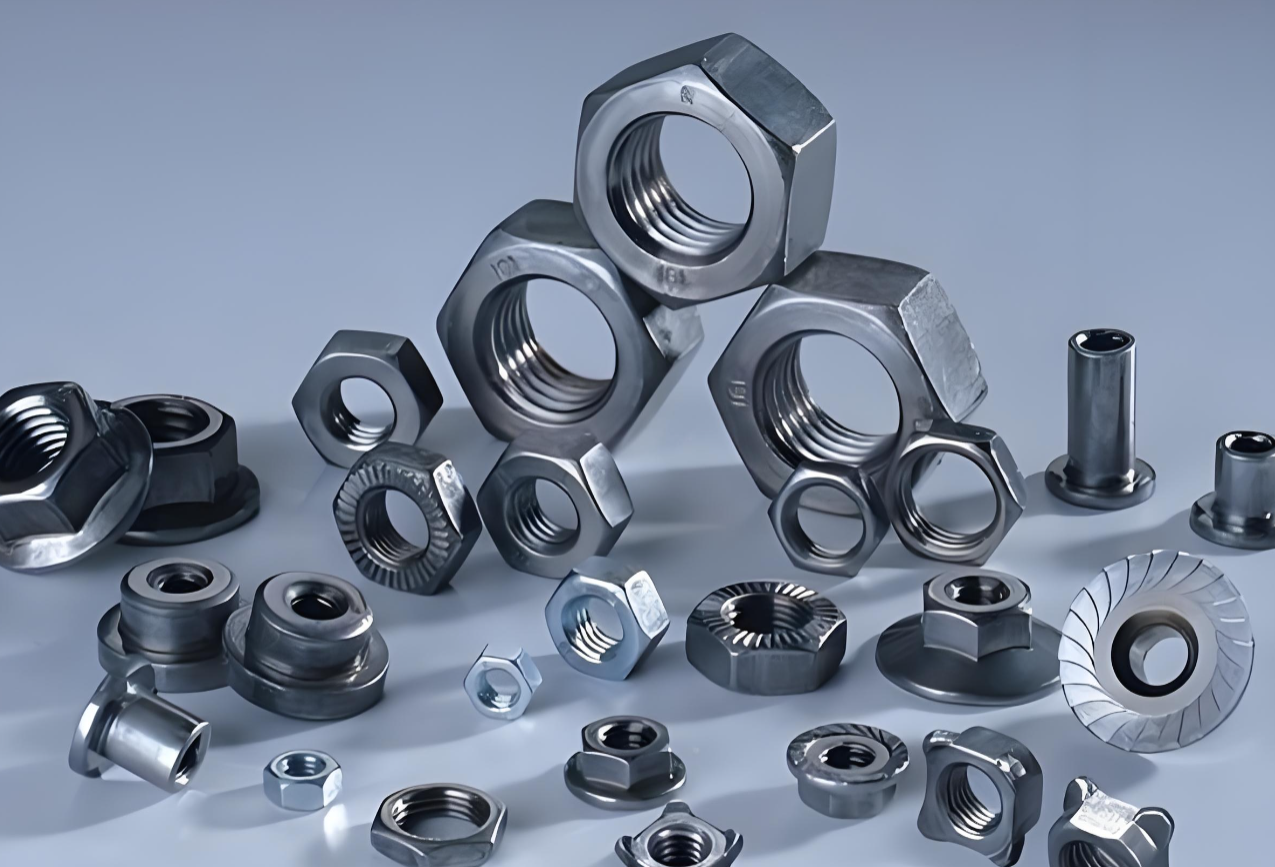

Nuts and Locking Options

Hex nuts provide a general female thread and bearing face. Flange nuts add a wider bearing surface. Cap nuts cover an exposed thread end, while coupling nuts connect threaded members. Slotted, prevailing-torque and insert locknut designs address different retention strategies. Their suitability depends on temperature, chemicals, reuse, installation and the governing joint design.

A locking feature is not a substitute for proper preload and joint design. Vibration, embedment, surface coating, temperature change and repeated service can affect a bolted joint. If a locking method is required, define whether it must be reusable, whether polymer components are allowed and what environmental limits apply.

Match nut and bolt threads exactly. Also review property compatibility and coating interaction. A high-strength bolt should not automatically be paired with an undefined nut. Stainless threaded pairs may require attention to galling; see our guide on stainless steel bolt galling.

Washers and Load Distribution

Flat washers can increase the bearing area under a head or nut, protect a finished surface or bridge an oversized hole within the approved joint design. Their inside diameter, outside diameter, thickness, material and hardness all matter. A washer that is too soft, too small or incompatible with the coating may not serve the intended function.

Spring washers, toothed washers and other locking-style washers are used in some designs, but their actual function should be defined rather than assumed. Electrical grounding, surface penetration, preload retention and cosmetic protection are different requirements. One washer style does not automatically satisfy all of them.

Special washers may be stamped to a drawing with tabs, unusual profiles, spacers or captive features. For custom parts, state burr direction, flatness, edge condition and any orientation requirement. A simple outline can still be a functional component that needs controlled material and inspection.

Studs and Threaded Rod

Studs provide threaded engagement without a conventional bolt head. Double-ended studs may engage a base component at one end and accept a nut at the other. Fully threaded studs and threaded rod support long clamping lengths, equipment mounting and adjustable assemblies. Hanger bolts combine different thread forms for particular mounting conditions.

Specify the thread at each end, overall length, thread lengths, unthreaded body if present, end style and any driving feature. If one end is installed permanently, define the engagement method and whether a locking compound, interference or other retention system is part of the approved assembly process.

Long members require attention to straightness, handling and packaging. Do not infer load capacity from diameter alone. Material, thread, effective section, installation, load direction and the complete joint determine suitability.

Pins, Rivets and Retaining Components

Pins can locate components, create pivots, transmit shear or retain an assembly. Dowel pins, clevis pins, spring pins and grooved pins have different installation and service characteristics. Define the mating hole, fit, insertion direction, retention method and whether movement is intended.

Rivets create permanent or semi-permanent joints and can be useful where access is available from one side or where welding is undesirable. Solid, blind and semi-tubular designs use different installation equipment and hole preparation. Joint thickness, hole diameter, material stack and access must be reviewed together.

Retaining rings, clips and stamped retainers control axial position or hold components in an assembly. Groove design and installation method are critical. A catalog appearance is not sufficient evidence that a part fits an existing groove; specify the applicable dimensions and verify sample assembly.

Anchors and Mounting Fasteners

Anchors connect equipment, supports or systems to concrete, masonry, wood or another base material. The substrate condition, thickness, edge distance, spacing, installation orientation and load direction are part of the design. Because anchor performance can be safety-critical, buyers should use the project engineer’s approved design and applicable documentation.

Mechanical expansion anchors, chemical anchors, screws and embedded components are not interchangeable. Installation details such as hole preparation, embedment and curing conditions may control performance. A fastener supplier should not replace an engineered anchor selection with a generic recommendation based only on diameter.

For solar mounting and outdoor structures, mounting bolts also interact with brackets, rails, roof interfaces and sealing components. Review the full system and environmental exposure. Our solar fasteners buying guide covers sourcing information for PV hardware.

Rigging-Related Hardware

Eye bolts, eye nuts, shackles, turnbuckles, wire-rope clips and related fittings connect tension members or support adjustment. Their use can involve lifting, suspension or restraint, so product designation, load direction, installation and applicable standard are essential. Visual similarity does not establish a safe working rating.

Do not use a decorative or general-purpose eye component as lifting hardware without verified documentation. Side loading, angular loading, thread engagement and base material can change the joint condition. The responsible engineer or system designer should define the requirement.

Separate general industrial hardware from rated rigging equipment in purchasing records, storage and inspection. Marking, traceability and certificates should match the order requirement. If documentation is required, request it during quotation rather than after delivery.

Materials and Property Requirements

Common fastener materials include carbon steel, alloy steel, stainless steel, brass, aluminum and purpose-selected alloys. Material choice should begin with load, corrosion, temperature, conductivity, magnetic response, weight, mating materials and manufacturing route. No material is best for every joint.

Carbon and alloy steels can support defined mechanical property requirements and a wide range of coatings. Stainless steels are selected for corrosion resistance and cleanliness in many environments, but grade and service exposure matter. Brass can be useful for electrical or corrosion-related applications, but it should not be substituted for steel when the joint requires different mechanical performance. Aluminum reduces weight but creates its own strength, wear and galvanic considerations.

Specify a recognized grade, property class or drawing requirement where appropriate. Do not rely on color or a supplier’s broad description. Our custom fastener materials guide compares selection factors without treating generic material names as complete specifications.

Coatings and Corrosion Exposure

Zinc plating, hot-dip galvanizing, black oxide, passivation and other finishes provide different combinations of corrosion protection, appearance, lubrication and dimensional effect. A finish should be chosen for the service environment and complete joint, not because it is common on a similar-looking fastener.

Coating thickness can influence thread fit, especially when internal and external threads are both coated. Hot-dip galvanized assemblies may require compatible threaded components. Black oxide normally relies on a seal and should not be described as equivalent to a heavy outdoor coating. Stainless steel may still corrode in unsuitable environments or when contaminated.

Review galvanic interaction between dissimilar metals, trapped moisture, drainage and contact with treated materials. Define any required test or acceptance standard on the drawing or purchase specification. See zinc plated vs galvanized bolts for a focused comparison.

Threads, Dimensions and Fit

Metric and inch thread systems use different designations. A nominal diameter that appears close is not evidence of compatibility. State thread system, diameter, pitch or threads per inch, class or fit when required, handedness and thread length. Include any special lead, multiple start or non-standard form on the drawing.

Overall length is measured differently for some head styles. Countersunk screws are typically defined differently from fasteners with a head that sits above the surface. Avoid ordering from a photograph or an informal measurement. Use the applicable product standard or a controlled drawing.

If maintenance teams may encounter both systems, use clear identification and storage controls. The guide to metric vs imperial fasteners explains why near matches must not be mixed.

Joint Design and Installation

A fastener works as part of a joint. Clamped material, hole size, bearing area, grip length, thread engagement, surface condition, installation tool and preload all influence behavior. The same bolt can perform differently in a rigid steel flange, thin sheet or soft polymer assembly.

Torque is an installation input, not a universal fastener property. Friction from material, coating, lubrication and reuse changes the relationship between torque and preload. Use an approved engineering specification and validated assembly process. A supplier should not invent a torque value without the joint design.

Plan tool access, head clearance, installation direction and service removal. Consider whether loose nuts or washers are acceptable inside equipment and whether captive hardware is needed. Record any lubrication, locking, marking or inspection step.

Applications by Industry

Machinery builders use bolts, screws, studs and pins for frames, guards, bearings, drives and serviceable modules. Construction systems use structural and general fasteners according to project specifications. Automotive and transportation assemblies use controlled fasteners in body, chassis, interior, electrical and equipment applications.

Electrical and electronic equipment may require conductive materials, controlled contact surfaces, grounding features or non-magnetic considerations. Solar mounting uses corrosion-resistant bolts, hanger bolts, nuts and washers within an engineered mounting system. Marine and outdoor equipment require realistic exposure review rather than a generic “rustproof” label.

Sheet-metal products use machine screws, tapping screws, clinch hardware, weld nuts, rivets and stamped retainers. Custom OEM assemblies may combine standard fasteners with drawing-specific brackets, clips and spacers. The purchase specification should distinguish catalog items from custom components.

Custom Fastener Sourcing

A custom fastener may change dimensions, head geometry, drive, thread length, point, material, finish or include an integrated feature. Customization begins with a drawing and functional requirement. A sample alone may not reveal material, heat treatment, thread fit or acceptance criteria.

Provide forecast quantity and program life because manufacturing route and tooling depend on demand. Cold forming, machining, stamping, thread rolling and secondary operations have different economic and geometric limits. Allow the supplier to review the route rather than requiring an unsuitable process without explanation.

First-article approval should compare the part with the controlled drawing and any agreed functional checks. If a standard fastener is modified, clarify which standard requirements still apply and which are replaced by the drawing.

Industrial Fastener RFQ Checklist

Send enough information for the supplier to identify open questions. A clear RFQ does not guarantee that every requested detail is manufacturable, but it creates a reliable basis for review and quotation.

Common Specification Mistakes

Frequent mistakes include ordering by photograph, mixing metric and inch threads, using “stainless” without a grade, selecting a coating without considering thread fit, and copying torque from an unrelated joint. Buyers also overlook grip length, installation access, mating material and whether the fastener must be removed for service.

Another mistake is asking for certificates, traceability or special inspection after production. Documentation affects sourcing and must be included in the RFQ. Do not assume that a standard commercial product includes project-specific reports.

Avoid absolute claims such as rustproof, vibration-proof or maintenance-free. Define the real environment and acceptance requirement. Engineering decisions should be traceable to the drawing, standard and approved assembly process.

Receiving Inspection and Change Control

Receiving inspection should match the purchase specification and the risk of the application. Confirm part identification, quantity, packaging and visible condition before opening controlled lots. Where the order defines dimensional or material documentation, verify that the report refers to the correct part number, revision and production lot. Do not treat an unrelated certificate as evidence for the delivered parts.

For standard fasteners, inspection may include the applicable product dimensions, thread verification, coating or finish condition and required markings. For custom fasteners, the drawing should identify critical dimensions and any agreed functional checks. Sampling plans, gauges and acceptance rules should be agreed before production when they are required; applying a new method after delivery can create a dispute rather than improve quality.

Protect traceability during storage and internal handling. Avoid mixing metric and inch items, similar grades, different coatings or visually similar custom revisions. Labels should remain connected to the correct package or lot. If parts are repacked for the production floor, maintain the identity needed by the buyer’s quality system.

Engineering changes require controlled review. A change in material, finish, thread, supplier process or manufacturing location may affect form, fit, function or documentation. The buyer and supplier should agree which changes require notification and renewed sample approval. Record approved deviations with a defined scope and expiry rather than allowing a temporary exception to become an undocumented production rule.

If a field problem occurs, preserve representative parts and installation information. Record the lot, joint configuration, tool, installation method and observed condition. A fastener cannot be diagnosed reliably from a damaged photograph alone. Evidence from the complete joint helps distinguish specification, manufacturing, handling and installation factors.
