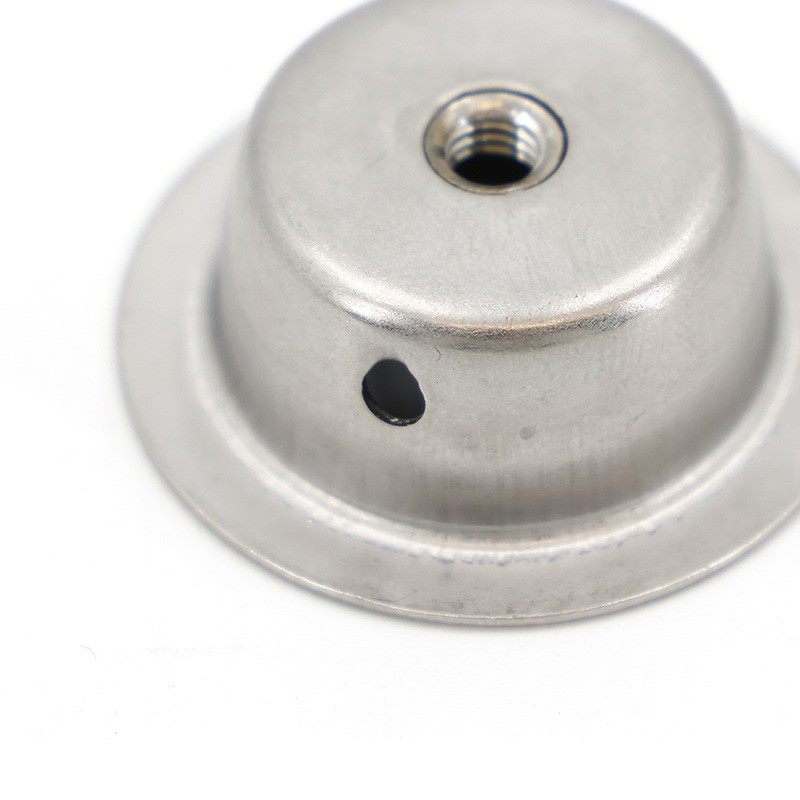

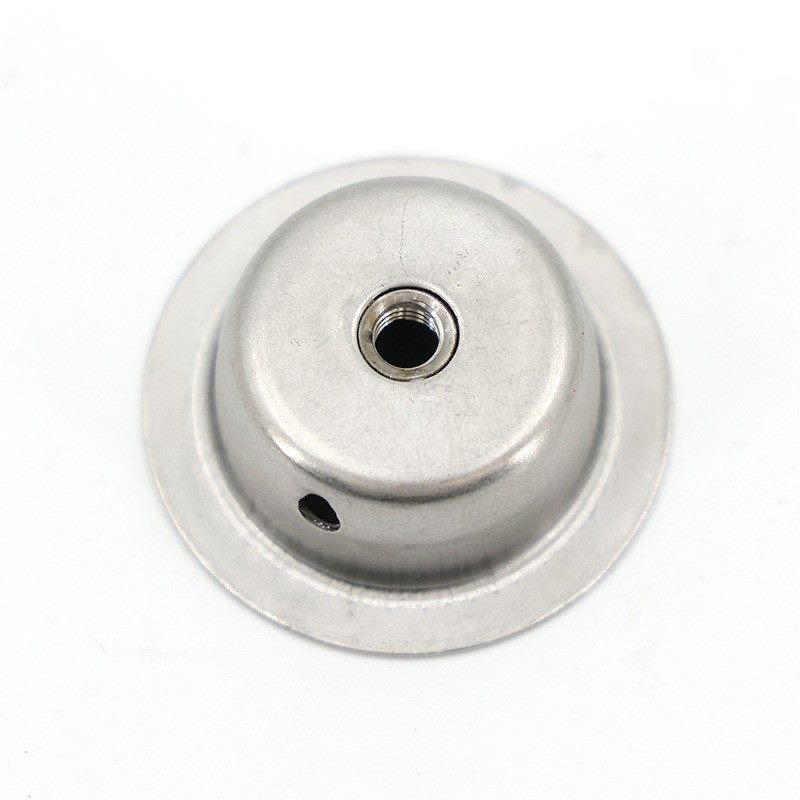

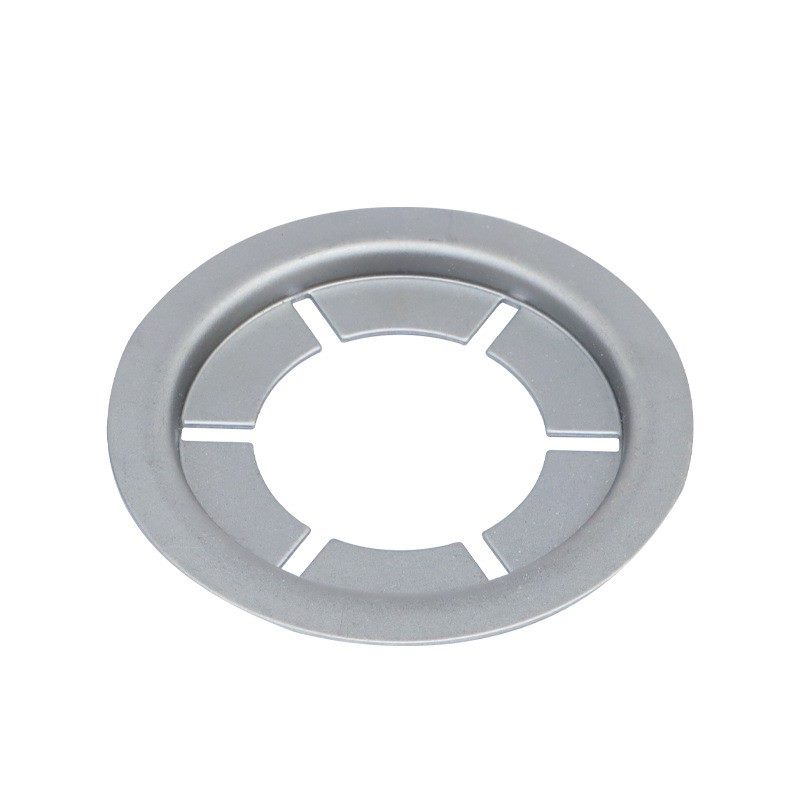

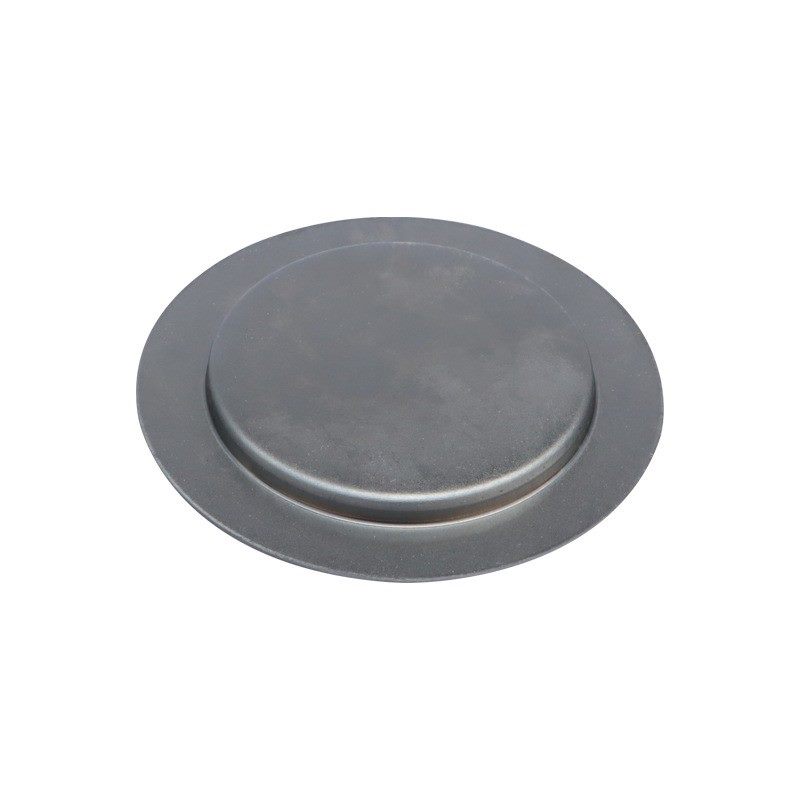

Our custom deep drawn automotive components service supports drawing-based metal parts for vehicle-related mechanisms, mounting systems, covers and structural subassemblies. Each project is reviewed around application, material, forming depth, joining method, production quantity and inspection expectations.
Key Features
Custom Specifications
| Item | Project Requirement |
|---|---|
| Material | Confirmed according to drawing and application |
| Thickness | Specified on the approved drawing |
| Diameter / Depth / Profile | Custom; confirmed during drawing review |
| Tolerance | Defined by drawing and inspection requirement |
| Surface Finish | As formed, deburred, polished, coated or project-specific |
| Secondary Operations | Trimming, piercing, welding, machining or insert installation as required |
| MOQ | Please contact us with drawing and expected quantity |
| OEM / ODM | Drawing- and sample-based manufacturing supported |
Manufacturing Capabilities
Manufacturing can involve deep drawing, stamping, trimming, piercing, bending, welding, machining and surface treatment. Suitability for a specific vehicle system must be confirmed through the customer’s engineering and validation process.
Applications
- Vehicle hardware assemblies
- Brackets, covers and retainers
- Actuator and mechanism components
- Interior or equipment mounting parts
- Supplier-designed automotive subcomponents
Quality Inspection
Inspection requirements should identify critical dimensions, material documents, sample approval method and production records. Any automotive-specific documentation or process approval must be agreed before quotation and is not assumed.
How to Request a Quote
Please provide the drawing or sample, material requirement, thickness, key dimensions, tolerance, surface finish, expected quantity and application. Unknown specifications can be reviewed with our engineering team before quotation.
Buyer and Engineering Notes
When discussing deep drawn automotive components, buyers should identify the vehicle-related subassembly, interface dimensions, joining method and expected production volume. As an automotive deep drawn parts supplier, we review the drawing for forming depth, mounting features, material requirements and inspection records before proposing a route. Please state any sample approval, traceability, packaging or project-document expectations in the RFQ. Automotive suitability remains subject to the customer’s engineering validation and agreed technical requirements.
Related Manufacturing Resources
Review related deep drawn component manufacturing, read our automotive deep drawing versus CNC guide, and explore automotive hardware parts.
Frequently Asked Questions
Can dimensions be customized?
Yes. Diameter, depth, wall profile, openings and mounting details are produced from approved drawings or samples.
What materials are available?
Material options are reviewed according to forming feasibility, environment and functional requirements. The final grade is confirmed in the quotation.
Can you provide samples?
Sample and tooling arrangements depend on geometry and quantity. Please send the drawing for review.
What surface finishes are available?
As-formed, deburred, brushed, polished, coated or other project-specific finishes can be evaluated.
Request a Quote
Send your drawing, quantity and application requirements for technical review.
