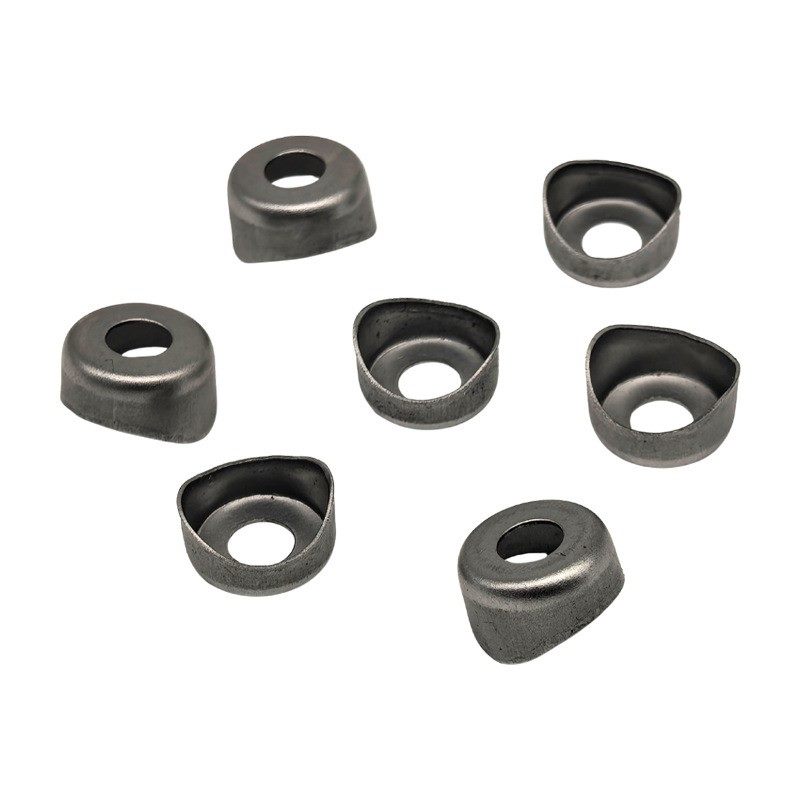

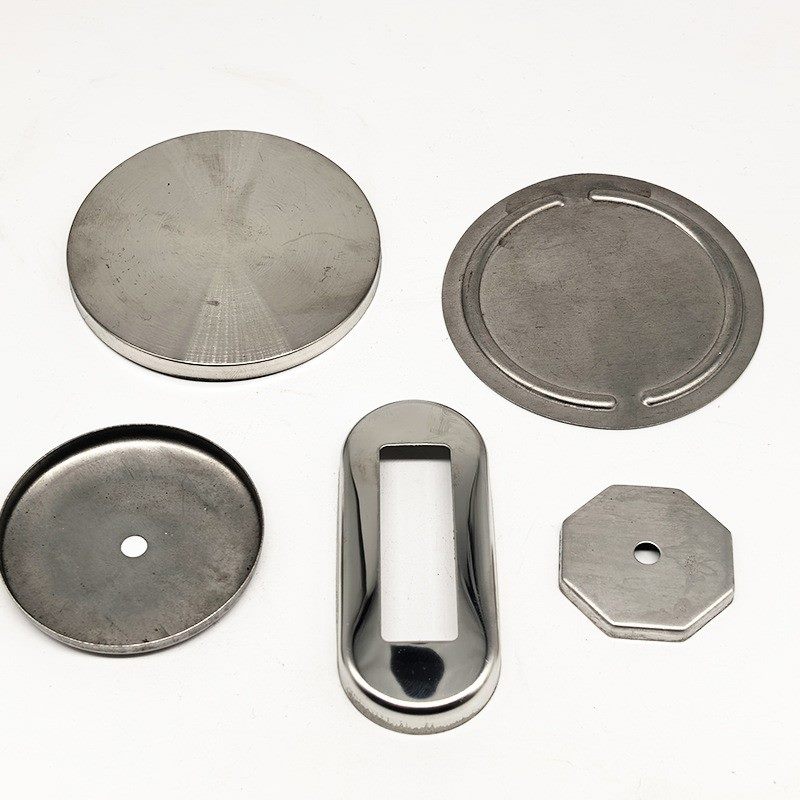

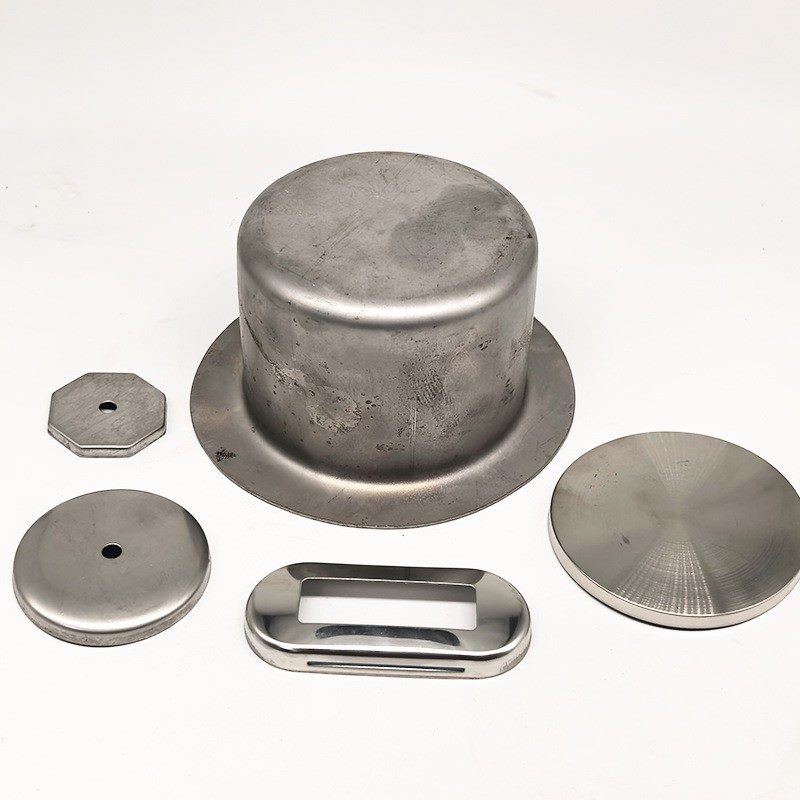

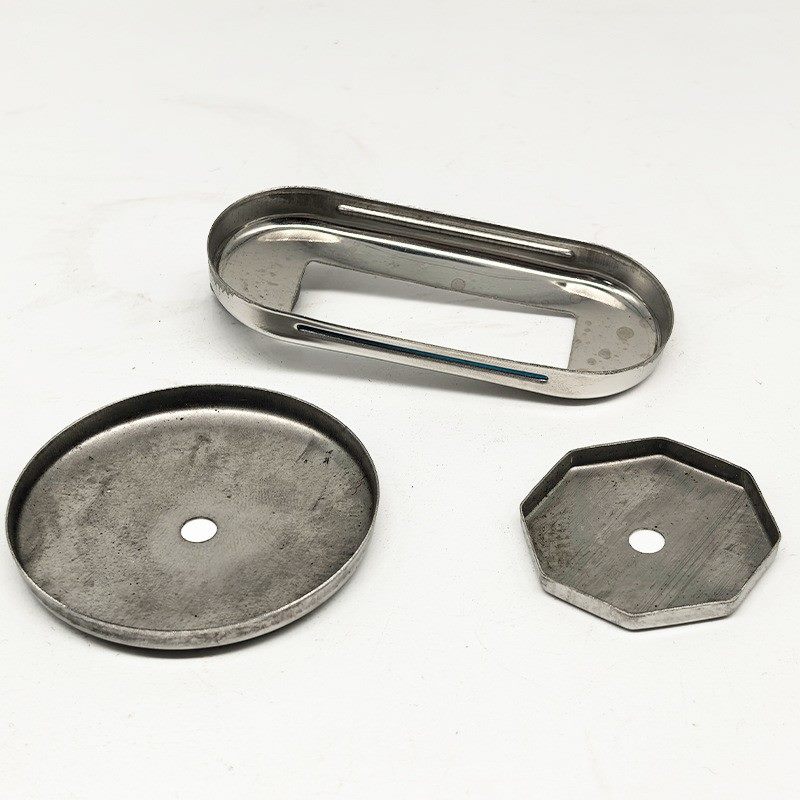

This custom deep drawn stainless steel cup is intended for OEM projects that need a seamless cup-shaped metal component with controlled geometry and a clean formed surface. We review material grade, diameter, drawing depth, wall thickness, corner radius and functional openings from drawings or samples before tooling and production.
Key Features
Custom Specifications
| Item | Project Requirement |
|---|---|
| Material | Confirmed according to drawing and application |
| Thickness | Specified on the approved drawing |
| Diameter / Depth / Profile | Custom; confirmed during drawing review |
| Tolerance | Defined by drawing and inspection requirement |
| Surface Finish | As formed, deburred, polished, coated or project-specific |
| Secondary Operations | Trimming, piercing, welding, machining or insert installation as required |
| MOQ | Please contact us with drawing and expected quantity |
| OEM / ODM | Drawing- and sample-based manufacturing supported |
Manufacturing Capabilities
Deep drawing may be combined with blanking, multi-stage forming, trimming, piercing, deburring, welding, thread insertion, CNC secondary machining or polishing. The final route depends on depth-to-diameter ratio, corner geometry, material behavior and inspection requirements.
Applications
- Sensor and instrument covers
- Industrial equipment assemblies
- Appliance and electrical components
- Fluid-control and protective cup components
- Drawing-based non-standard hardware
Quality Inspection
Inspection items can include incoming material verification, diameter and depth checks, flange flatness, opening position, visual surface review and sample approval. Required reports or documents should be specified with the RFQ.
How to Request a Quote
Please provide the drawing or sample, material requirement, thickness, key dimensions, tolerance, surface finish, expected quantity and application. Unknown specifications can be reviewed with our engineering team before quotation.
Buyer and Engineering Notes
Procurement teams evaluating a deep drawn stainless steel cup should identify the functional diameter, usable depth, rim geometry, opening pattern and cosmetic zones before tooling review. As a custom deep drawn metal cup manufacturer, we compare the drawing with forming limits and secondary-operation needs, then confirm which dimensions require sample measurement. Please include the assembly method, annual quantity, packaging expectations and any material-document request. This information helps separate essential controls from general reference dimensions and supports a clearer quotation without assuming unverified tolerances.
Related Manufacturing Resources
Review our deep drawing manufacturing range, compare process choices in CNC machining versus deep drawing, or explore custom industrial hardware parts.
Frequently Asked Questions
Can dimensions be customized?
Yes. Diameter, depth, wall profile, openings and mounting details are produced from approved drawings or samples.
What materials are available?
Material options are reviewed according to forming feasibility, environment and functional requirements. The final grade is confirmed in the quotation.
Can you provide samples?
Sample and tooling arrangements depend on geometry and quantity. Please send the drawing for review.
What surface finishes are available?
As-formed, deburred, brushed, polished, coated or other project-specific finishes can be evaluated.
Request a Quote
Send your drawing, quantity and application requirements for technical review.
