Engineering the Stainless Steel Eye Bolt Expansion Anchor
In high-stakes industrial lifting and permanent anchoring, the Stainless Steel Eye Bolt Expansion Anchor serves as the primary interface between structural concrete and mechanical loads. Unlike conventional bolts, a Lifting Ring Expansion Bolt must handle not only static tension but also dynamic shear and angular stress. As a specialized Fastener Manufacturer, Youjia Metals utilizes premium Cold Forging technology to ensure that the eye of the bolt is a single, continuous piece of metal, eliminating the risk of weld failure common in lower-grade Ring Expansion Bolts.

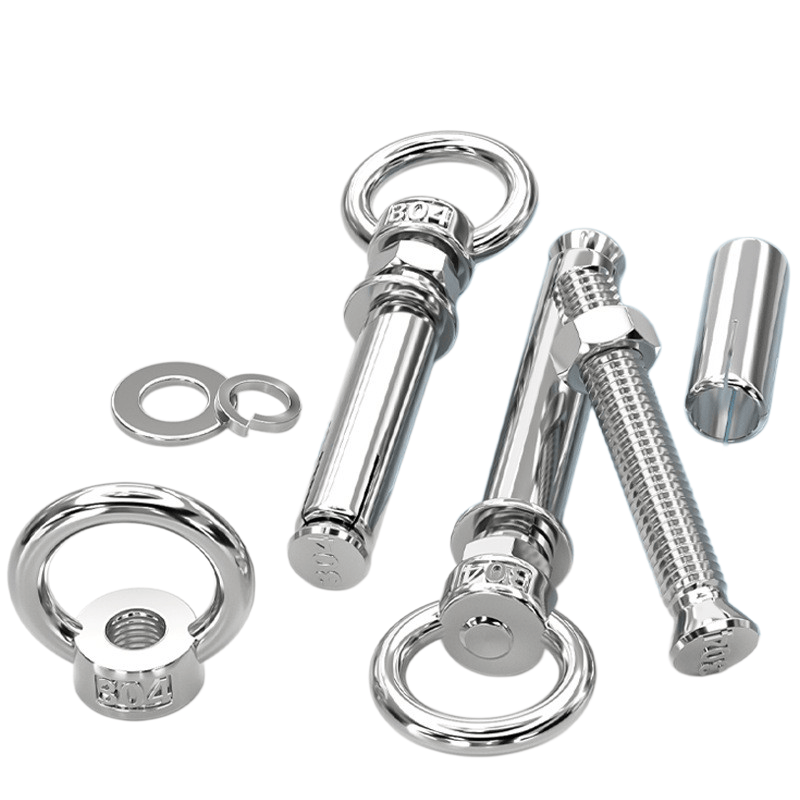

The mechanical integrity of a Stainless Steel Eye Bolt Expansion Anchor is derived from its three-part assembly: the forged eye-bolt, the heavy-duty expansion sleeve, and the precision-machined conical wedge. When the expansion anchor is torqued, the wedge is pulled into the sleeve, forcing it to expand 360 degrees against the masonry substrate. This creates a secure, vibration-proof bond that is essential for heavy-duty industrial anchoring and safety-critical overhead installations.
Furthermore, our SS304 and SS316 Eye Bolt Expansion Anchors are designed to meet Tight Tolerance specifications (±0.05mm). This precision ensures that the thread engagement between the eye and the internal cone is flawless, preventing Stainless Steel Galling and ensuring a smooth installation process for B2B contractors and site engineers. Whether you are sourcing Wholesale Eye Anchors for electrical line suspension or heavy machinery rigging, our commitment to quality ensures every Concrete Fastener exceeds project safety margins.
Forged Integrity
Our Eye Bolt Expansion Anchors are born from precision forging, ensuring a superior grain structure for maximum Tensile Strength and safety.
- One-piece forged eye design.
- Superior lifting load limits.
- Anti-deformation ring geometry.
Material Science
We utilize high-purity SS304 and SS316 Stainless Steel, providing a protective oxide layer that resists corrosion in coastal environments.
- Marine-grade SS316 options.
- Excellent Acid/Alkali resistance.
- Full MTR Traceability.
OEM Capability
Custom Eye Bolt Expansion Anchor solutions based on CAD/PDF drawings. We adjust sleeve lengths for your substrates.
- Bespoke thread diameters.
- Custom eye internal diameters.
- Rapid B2B technical support.
| Primary Keywords | Stainless Steel Eye Bolt Expansion Anchor, Ring Anchor Bolt, Expansion Eye Bolt |
| Available Materials | Stainless Steel 304, 316, 316L (V4A Grade) |
| Standard Sizes | M6, M8, M10, M12, M16, M20, M24 (Standard & Custom Lengths) |
| Surface Treatment | Mirror Bright Polished (Ra < 0.4μm) / Electropolished |
| Quality Assurance | ISO 9001:2015, Salt Spray Tested, Tensile Strength Batch Verified |
Manufacturing Excellence & Metallurgy
The reliability of a Stainless Steel Eye Bolt Expansion Anchor begins with the raw material selection. At Youjia Metals, we source austenitic stainless steel with precise nickel and chromium ratios. For our SS316 expansion anchors, we guarantee a molybdenum content of 2.0-3.0%, which is essential for preventing pitting corrosion in high-chloride environments like marine docks and chemical plants. Our Fastener Manufacturer protocols require each wire rod batch to be verified by spectrometer before entering the Cold Forging stage.
During the manufacturing of the Eye Bolt Anchor, we prioritize thread geometry. Threads are rolled under high pressure, which work-hardens the surface and creates a smoother profile compared to cut threads. This is vital for the Expansion Eye Bolt, as it allows the nut to move smoothly during installation, ensuring the sleeve expands correctly without seizing. Every Concrete Fastener we ship is a testament to our ISO 9001 quality control, involving Go/No-Go gauge testing and destructive pull-out testing to confirm ultimate load capacities.
Global Application Cases
Marine
Lifting points and rigging on SS316 ship decks and piers.
Infrastructure
Securing overhead lighting and safety harness lines in concrete.
Power Utility
Anchoring high-voltage cable trays and vertical line supports.
Factory MRO
Permanent lifting attachment points for heavy machinery maintenance.
Technical FAQ
A: The SWL varies by diameter (M6 to M24) and the strength of the concrete substrate. As a professional Fastener Supplier, we provide a detailed load-capacity chart with every Stainless Steel Eye Bolt order, ensuring your engineering team can specify the correct factor of safety for overhead lifting.
A: Stainless steel on stainless steel is prone to cold-welding. We recommend using a high-quality anti-seize lubricant on the Stainless Steel Eye Bolt Expansion Anchor threads. Our ISO 9001 factory also offers passivated and polished finishes that significantly reduce surface friction.
A: Yes. We provide extensive OEM and ODM services. Whether you require extended sleeves for thick insulation, specialized ring diameters, or 316Ti material for high-temperature chemical environments, our engineers are ready to review your CAD drawings.
Secure Your Critical Lifting Supply
Experience factory-direct pricing and uncompromised quality on wholesale Stainless Steel Eye Bolt Expansion Anchors. Request your B2B quote today.
