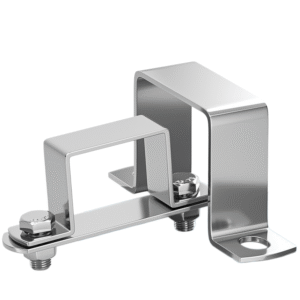

Engineering the Modern Stainless Steel Square U-Bolt
The Stainless Steel Square U-Bolt is an essential component for any industrial application involving the securing of rectangular or square substrates. Unlike round U-bolts designed for cylindrical pipes, a Square U Bolt provides a flush fit against flat-sided beams and tubing, ensuring a much larger contact area and more stable load distribution. As a leading Fastener Manufacturer, Youjia Metals specializes in the precision bending of these fasteners to ensure Tight Tolerance across the inner width and leg lengths—critical for B2B supply in the automotive, marine, and construction industries.

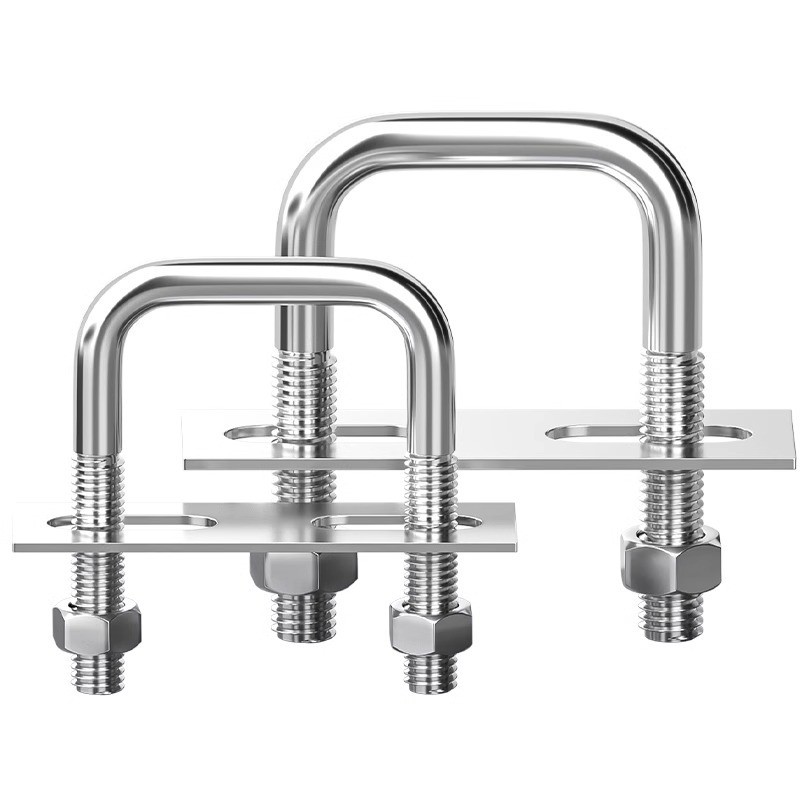

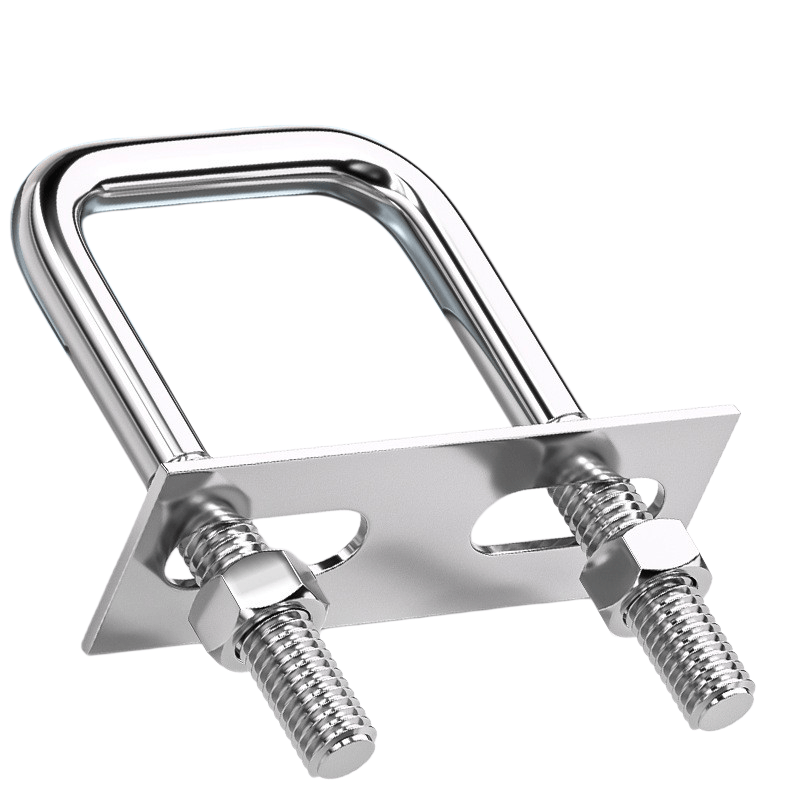

Our Square U-Bolts with Mounting Plates are engineered to solve a common problem in structural fastening: substrate deformation. By including a heavy-duty Stainless Steel Plate, the clamping force is distributed across the entire width of the tube, preventing the U-bolt legs from digging into the material. This is particularly vital when working with aluminum tubing or thin-walled steel profiles. Every Industrial U-Bolt we produce is cold-formed to maintain the integrity of the metal’s grain structure, resulting in a Tensile Strength that far exceeds standard cast or low-cost alternatives. Whether you are building boat trailers or securing Industrial Hardware in a chemical plant, our Square Bend Bolts deliver uncompromised safety.
For SS304/SS316 square U-bolt assemblies, specify the rod diameter, inside width, leg length, bend radius, thread, mounting plate, material, and finish. Thread-forming method, tolerance, traceability, and inspection scope are agreed for the order. Stainless threads can gall; rolling does not guarantee prevention.
Marine Grade
Manufactured from high-purity SS316 Stainless Steel, providing superior resistance to chloride-induced pitting in coastal regions.
- 96h+ Salt Spray Resistance.
- Acid & Alkali Proof.
- Full MTR Documentation.
Precision Bending
Square bend geometry and fit on rectangular profiles are reviewed against the drawing. A ±0.5 mm tolerance request requires technical confirmation for the specified dimensions.
- Uniform clamping pressure.
- Anti-vibration nuts included.
- Tested for load capacity.
OEM & Support
As a direct Fastener Supplier, we provide custom plate thicknesses and bolt lengths based on your CAD drawings.
- Bespoke thread pitches.
- Custom “U” geometry.
- 24-hour B2B technical review.
| Primary Keywords | Stainless Steel Square U-Bolt, Square Bend Bolt, U-Bolt with Plate |
| Available Materials | Stainless Steel 304, 316, 316L, Carbon Steel (Zinc/Galvanized) |
| Diameter Range | M6, M8, M10, M12, M16 up to M24 (1/4″ to 1″ Imperial) |
| Standard Compliance | Drawing-based square U-bolt requirements; applicable dimensional standard confirmed before ordering |

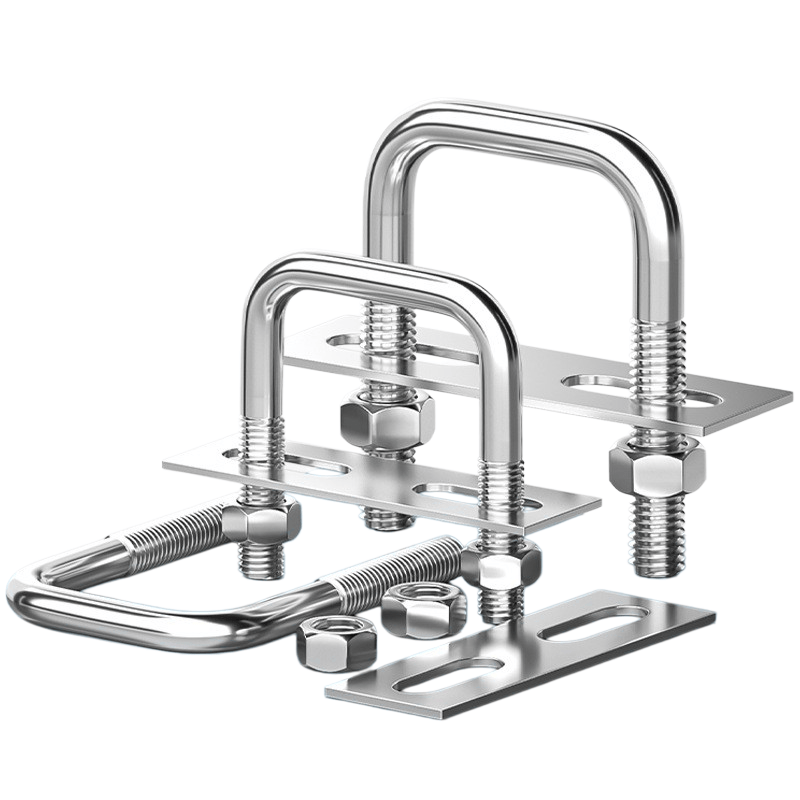

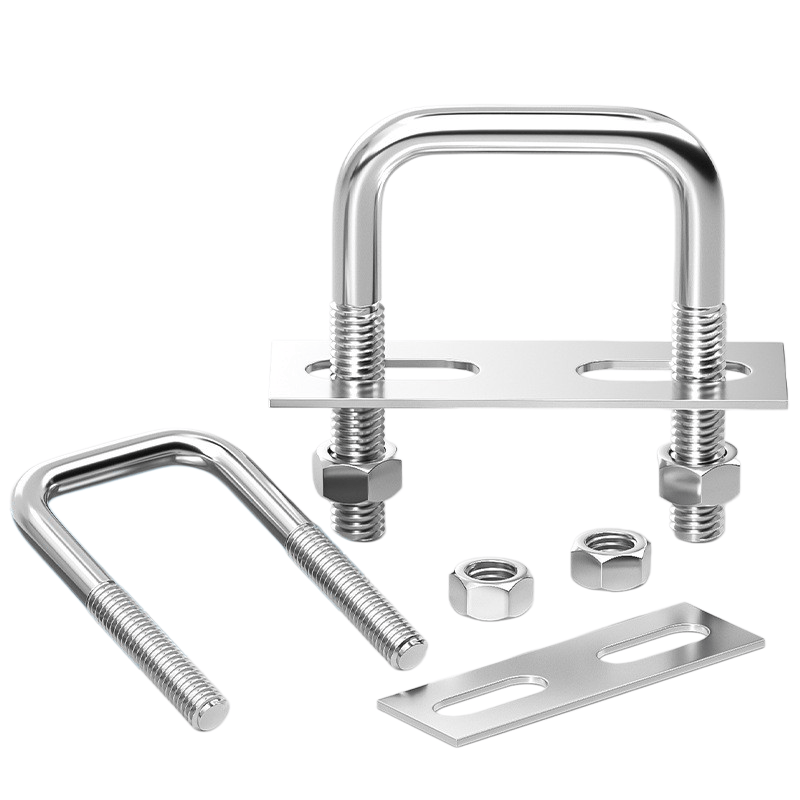

| Included Components | Square Bolt, Backing Plate, 2x Hex Nuts, 2x Washers |
Advanced Manufacturing & Metallurgy
Producing a high-tensile Stainless Steel Square U-Bolt requires more than a simple bending machine. At Youjia Metals, we utilize CNC cold-bending centers that precisely control the metal’s elastic-plastic transition. This prevents micro-cracks at the corners of the “Square” bend—the area under the most stress in Boat Trailer and structural applications. Our Fastener Manufacturer protocols prioritize grain flow alignment to ensure the highest possible Tensile Strength and shear resistance.
Mounting plates can be reviewed with the U-bolt assembly. Specify slot positions, plate thickness, thread fit, edge condition, and coating requirements. Dimensional checks, thread gauges, salt-spray testing, sampling, and records are agreed in the order specification.
Industry-Leading Applications
Boat Trailers
Securing rectangular trailer frames and axles in SS316 marine grade.
Construction
Mounting structural steel beams and cable management trays.
Solar PV
Fastening racking systems to square posts in high-wind zones.
Piping Support
Industrial pipe suspension and rectangular ductwork anchoring.
Technical FAQ
A: The plate serves as a reinforcement bar that prevents the U-bolt legs from spreading under load. It also protects the rectangular profile being secured by distributing the clamping pressure, ensuring a Sleeve Anchor-like stability for the assembly.
A: Yes. As an OEM Fastener Manufacturer, we can adjust the inner width and length of the Stainless Steel Square U-Bolt to match your specific profile dimensions. We support custom tooling for large wholesale orders.
A: In non-coastal, standard outdoor environments, SS304 U-Bolts provide excellent service life. However, if the site is within 10km of the coast, we strongly recommend SS316 U-Bolts to prevent chloride-induced corrosion.
Secure Your Structural Projects Now
Get direct factory pricing on wholesale Stainless Steel Square U-Bolts. Order-specific quality requirements and global B2B shipping logistics.
