Stainless Steel Serrated Hex Flange Nuts
M3–M20 • Integrated Flange • SS304 / SS316 Options • OEM Support
Product Overview

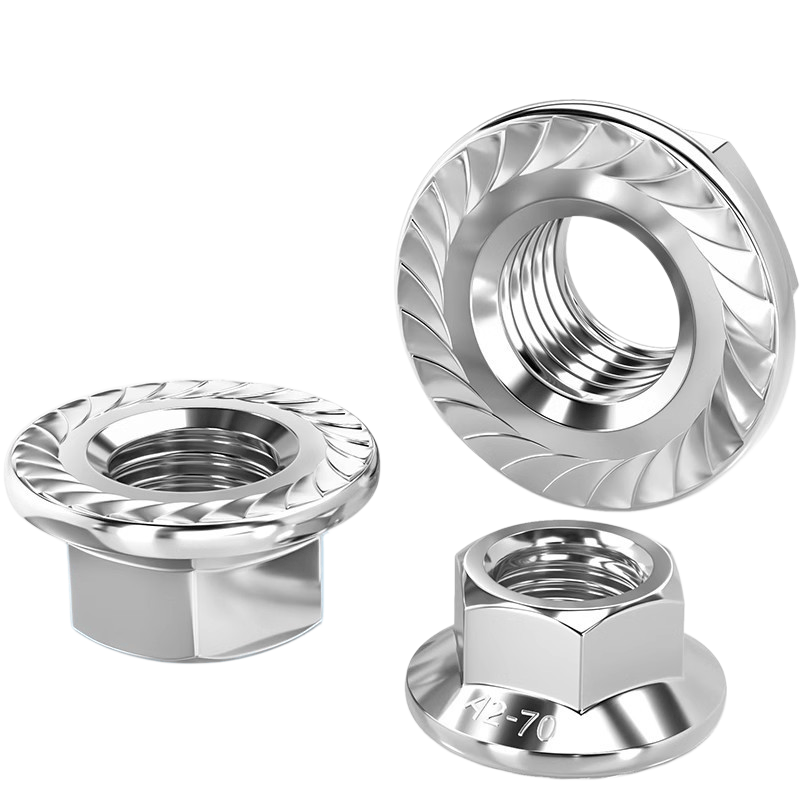

Youjia Metals supplies stainless steel serrated hex flange nuts for industrial fastening and OEM assemblies. The integrated flange spreads contact pressure across a wider bearing area, while the serrated face engages the mating surface during tightening.
This product is a regular serrated flange nut without a nylon insert. Select the nut size, material, thread system, and bearing surface to match your assembly. Serrations do not replace engineering review, correct torque, or a verified locking method for critical connections.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | Hex nut with integrated serrated flange; no nylon insert |
| Metric Size Range | M3–M20; individual sizes confirmed at quotation |
| Material Options | 304 / 316 stainless steel; carbon steel option with black oxide finish |
| Thread Options | Metric / UNC / UNF; specify thread diameter and pitch |
| Bearing Face | Serrated flange; flange dimensions confirmed from the selected size or drawing |
| Dimensions and Tolerance | According to the agreed drawing or product specification |
| OEM Service | Custom dimensions and finishes reviewed from technical drawings |
Features and Material Selection
The hex body allows installation with standard tools. The flange provides an integrated bearing surface that can reduce the need for a separate washer where the assembly design permits. Confirm the mating surface and coating before using serrations, since they can mark the contact surface.
SS304 and SS316 options provide corrosion resistance for suitable environments. SS316 may be considered for more demanding exposure, but stainless steel is not corrosion-proof. Material grade alone does not establish the nut’s proof load, strength class, or suitability for a particular application; these requirements must be agreed before ordering.
The existing carbon steel and black oxide option is retained for projects that specify it. Finish compatibility and outdoor corrosion protection must be reviewed separately.
Industrial Applications
Discuss your machinery, equipment, frame, bracket, or other OEM fastening application with our team. Nut selection depends on the mating bolt or stud, joint loads, vibration, contact surface, installation torque, and working environment. Do not assume a working load rating from the product name or photograph.
OEM Manufacturing and Inspection
Send your drawing or selected specification for review of flange dimensions, thread system, material, finish, and quantity. Custom manufacturing feasibility and delivery timing are confirmed in the quotation.
Specify any required dimensional inspection, thread gauging, material identification, proof-load testing, or documents before production. Inspection methods, sampling, and document availability must be agreed for the order; no unverified certification or automatic test report is promised.
Flange Nut FAQ
No. This product is the regular serrated hex flange nut. It does not contain a nylon insert.
The listed metric range is M3–M20. Metric, UNC, and UNF thread requests are reviewed separately. Provide the exact diameter, pitch, flange dimensions, and required quantity for confirmation.
The integrated flange supplies a bearing face, but washer requirements depend on the joint and mating surface. Confirm the assembly design before ordering.
Yes. Send the drawing, material, finish, quantity, inspection requirements, and destination to our quotation team for review.
Related Fasteners
Explore nuts and fasteners, or review our DIN 6923 / GB6177 stainless steel flange nut listing. Different listings are not interchangeable unless the dimensions and specification match your order.
Request a Flange Nut Quote
Provide size, thread system and pitch, material, flange dimensions, finish, quantity, application, inspection needs, packaging, and delivery destination.
