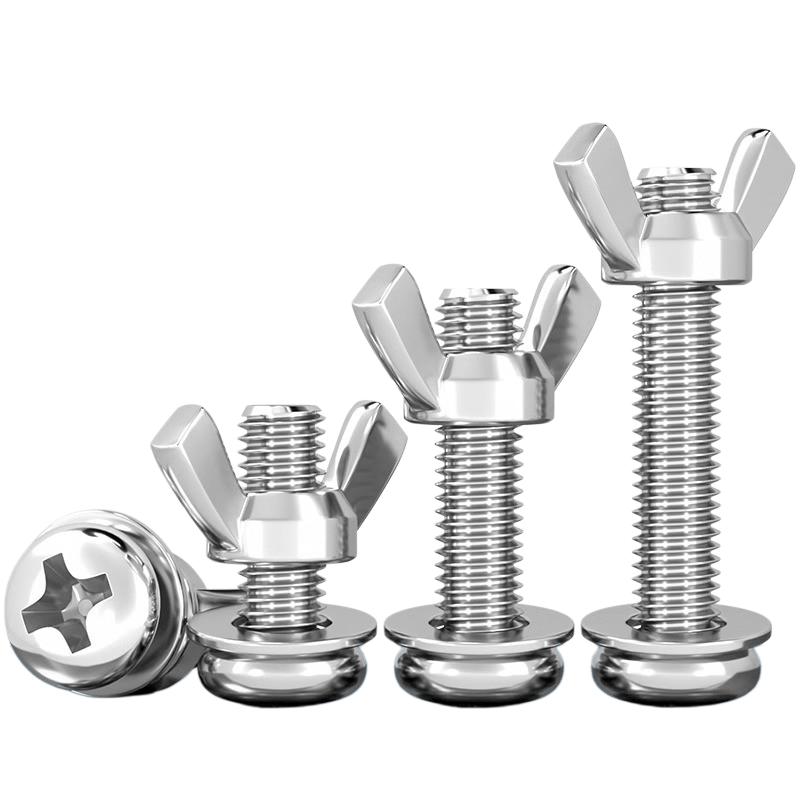

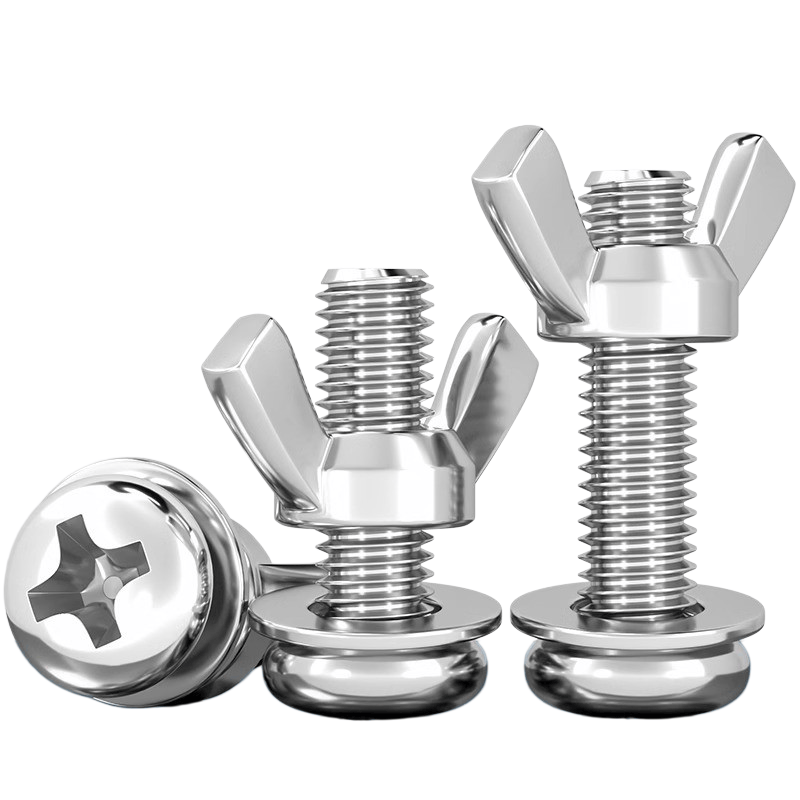

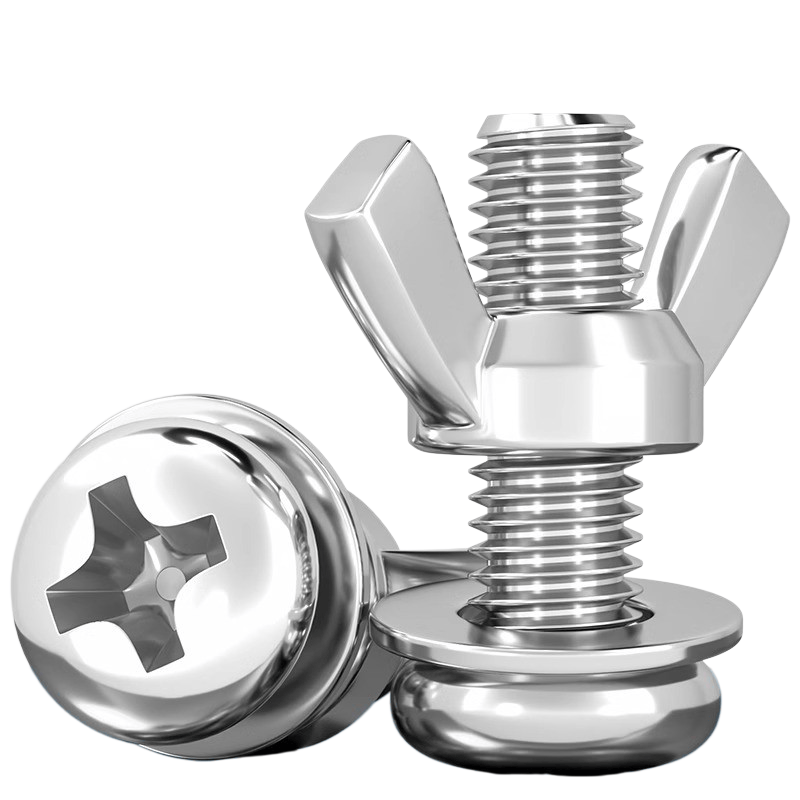

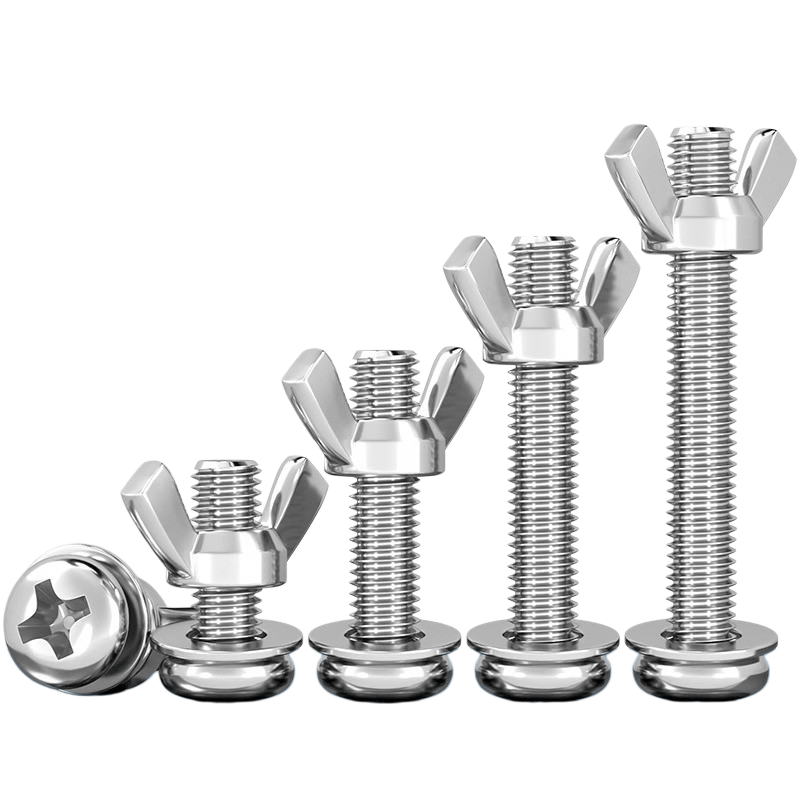

Industrial Innovation: The Stainless Steel Wing Nut Screw Assembly
The Stainless Steel Wing Nut Screw, also recognized as the Butterfly Nut Bolt Set, is a premier fastening solution where manual adjustability and rapid maintenance are required. Unlike conventional hex bolts that necessitate a wrench, our Wing Nut Fasteners are designed with ergonomic “wings” that allow for high-torque hand tightening. As a leading Fastener Manufacturer, Youjia Metals produces these assemblies with a focus on thread smoothness and material purity, ensuring that every SS304 Wing Nut Screw provides a vibration-resistant bond in lightweight and medium-duty industrial applications.
The engineering value of our Wing Nut and Screw Kits is derived from the precision alignment of the Pan Head Machine Screw and the Butterfly Nut. In sectors such as consumer electronics, medical equipment, and temporary structural displays, the requirement for a fastener that can be serviced without external tools is critical. Our Stainless Steel Screws are cold-forged and then thread-rolled to hit Tight Tolerance specifications (Class 6g/6H). This specialized thread rolling work-hardens the surface, preventing the dreaded Stainless Steel Galling—a cold-welding phenomenon often encountered during repeated manual assembly of lower-grade hardware.
For wholesale wing nut screw assemblies, specify the material, thread, dimensions, mating components, service loads, inspection criteria, and required documents. Material traceability and test-report availability are confirmed before ordering. Suitability for an access panel, drum hardware, or other assembly depends on the actual joint requirements.
Corrosion Proof
Our SS316 Wing Nut Screws are marine-grade certified, offering maximum protection against pitting in high-salt-fog B2B environments.
- SS304 (A2) for General Use.
- SS316 (A4) for Marine Projects.
- Mirror-bright polished finish.
Tool-Free Torque
Precision-engineered Butterfly Nuts (DIN 315) provide the leverage needed for secure hand-tightening without damaging threads.
- High friction grip design.
- Uniform radial pressure.
- Anti-stripping thread rolling.
Custom OEM
As an Industrial Hardware leader, we support custom screw lengths and non-standard washer sizes based on CAD drawings.
- Customized wing geometries.
- Bespoke thread pitches.
- Metric & Imperial availability.
| Core Keywords | Stainless Steel Wing Nut Screw, Butterfly Nut Bolt, Hand Fastener |
| Standard Compliance | DIN 315 (Nut), DIN 7985 / ISO 7045 (Screw), ISO 7089 (Washer) |
| Available Materials | Stainless Steel 304, 316, 316L (A2-70, A4-80) |
| Thread Diameters | M3, M4, M5, M6, M8, M10, M12 (Custom lengths up to 200mm) |
| Quality Testing | Torque Test, Material Composition Spectroscopy, Salt Spray Test |
Precision Fabrication & Advanced Metallurgy
Manufacturing a reliable Stainless Steel Wing Nut Screw requires careful attention to the crystallization of the metal during the forming process. At Youjia Metals, we utilize multi-station cold-heading machines to form the Phillips Pan Head. This process aligns the grain flow with the head’s geometry, providing 20% higher Tensile Strength compared to CNC-turned screws. Following the heading process, threads are formed via precision rolling dies, ensuring that the Butterfly Nut Bolt assembly features a glass-smooth interface for reliable, repeatable manual operation.
Manufacturing method, wing geometry, and finish requirements are reviewed from the drawing. Electropolishing, torque testing, tensile testing, traceability, and Material Test Reports must be requested and agreed for the order. No universal compliance or certification promise is made.
Primary Industrial Fields
Display Stands
Quick assembly of retail shelving and trade show structures.
Musical Gear
High-torque Wing Nuts for drum kits and cymbal stands.
Electronics
Securing battery terminals and quick-access enclosures.
Marine MRO
Saltwater-proof SS316 hand fasteners for boat equipment.
Technical FAQ
A: A complete kit allows thread, material, and component requirements to be reviewed together. Specify mating dimensions, strength requirements, and inspection criteria; compatibility must be confirmed rather than assumed.
A: While hand-tightening provides excellent torque, for high-vibration applications, we recommend adding a spring washer or a drop of thread-locking compound. As an OEM Fastener Manufacturer, we can also supply Wing Nuts with nylon inserts for added security.
A: Yes. We provide extensive Custom Stamping and machining services. Whether you require M3 or M12 diameters, our facility can manufacture bespoke lengths up to 200mm based on your technical CAD drawings or samples.
Secure Your B2B Supply Direct
Request wholesale wing nut screw pricing with your material, dimensions, quantity, packaging, inspection documents, and delivery destination.
